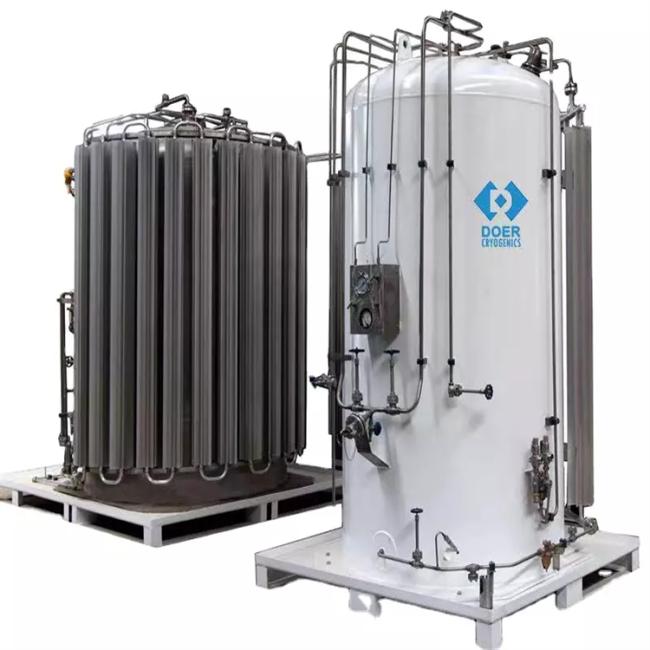

Cryogenic Micro Bulk Tanks For Liquid Oxygen Storage

Cryogenic Liquid Oxygen Storage Micro Bulk Tanks

Description
Micro bulk tank is a pressure vessel which is used for filling and storing dangerous chemicals such as LO2, LAr, LN2, LCO2 and LNG. The maximum working pressures available are 0.8Mpa, 1.6Mpa, 2.4Mpa and 3.4Mpa; the nominal volumes available are 1M3, 2M3, 3M 3and 5M3. The micro tank is suitable for transporting vaporized gases when it’s connected with a vaporizer. Micro tanks are pressure vessels with inner and outer container double layers structure. The inner container is made of stainless steel suspended in the outer container with supporting devices. The space between the inner container and the outer container is wrapped with heat insulated material and vacuum withdrawn.Relevant safety regulations must be complied with when installing, using or maintaining the micro tank.

Specification


Remarks
1. Inner Material:304/316 stainless steel.
2. Outer Material:Q235b carbon steel.
3. use:: industrial, medical, civil natural gas, etc.

Packing and shipping
We take different packing approaches according to specific requirements. Wrapped bags and wooden boxes are commonly used for waterproof, dust-proof and shock-proof purposes, ensuring that every equipment remains in perfect condition after delivery.
