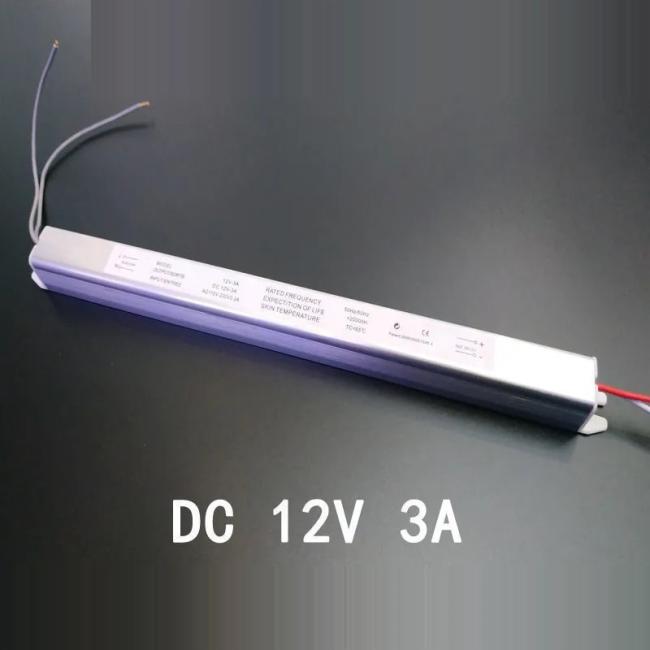

12v 36w 48w 60w 72w 100w LED Strip Power Supply Ultra thin Led driver 12v for lighting box
12v 36w 48w 60w 72w 100w Ultra thin Led driver 12v for lighting box
Specification
| Wattage: | 24W,36W,45W,60W,80W,100W,150W,200W,250W,300W,400W |
| DC Voltage: | 12V/24V |
| DC Current: | 1A,1.5A,1.87A,2A,2.5A,3A,3.75A,3.3A,4.1A,5A,6.25A,6.6A,8.3A,12.5A,16.6A,20.8A,25A,33.3A |
| Ripple & Noise: | 180mV,200mV,250mV,300mV,320mV,350mV |
| Voltage Tolerance: | ±2.5% |
| Line Regulation: | ±5.0% |
| Load Regulation: | 0.01 |
| Setup,Rise Time,Hold Up Time: | 1s,50ms, 20ms/230VAC |
| AC Voltage Range: | 110-265VAC,170-265VAC |
| Frequency Range: | 47-63Hz |
| Efficiency: | 86%-90% |
| AC Current: | 0.22A / 230V,0.3A / 230V,0.4A / 230V,0.55A / 230V,0.7A / 230V, |
| 0.8A / 230V,1.3A / 230V,1.8A / 230V,2.3A / 230V,2.7A / 230V,3.6A /230V | |
| AC Inrush Current: | 35A/230V,45A/230V |
| Leakage Current< | 0.5 ma / 265 vac |
| Over-load: | 105%-135% hiccup mode |
| Over-voltage: | 115%-135% Cut Off the Output,Auto-recovery |
| Over-temp: | Shut down O/P voltage, Auto-recovery |
| Working temp: | -10~ +60C°(Refer to output load derating curve) |
| Working Humidity: | 20 ~ 90% RH,non-condensing |
| Storage Temp: | -10~ +60C° |
| Storage Humidity: | 10 ~ 95% RH |
| Isolation Resistance: | I/P-O/P,I/P- fg,O/P- fg:100M Ohms/500VDC / 25C°/ 70% RH |
| Withstand Voltage: | I/P-O/P:3KVAC I/P- fg:1.5KVAC O/P- fg:0.5KVAC |
| Safety standards: | CE,RoHS,FCC,ISO9001 |
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Efficiency: | 0.9 | Output Current: | 3A |
| Lighting solutions service: | Lighting and circuitry design | Input voltage: | 220V |
| Output Power: | 1 - 50W | Output power: | 36w |
| Output Type: | Single | Output current: | 3A |
| Input Voltage: | 220V | Application: | LED Lighting |
| Output Frequency: | 50-60HZ | Protections: | Shortcuit Overtemp Overload Overtemp |
| Certificate: | CE , ROHS | size: | 282*18*18mm |
Advantage:
- Protections:short circuit/over load/over voltage/over temperature
- IP67 design for indoor or outdoor installation
- It can be used in dry ,wet and rainy environment Cooling by free air, high reliability

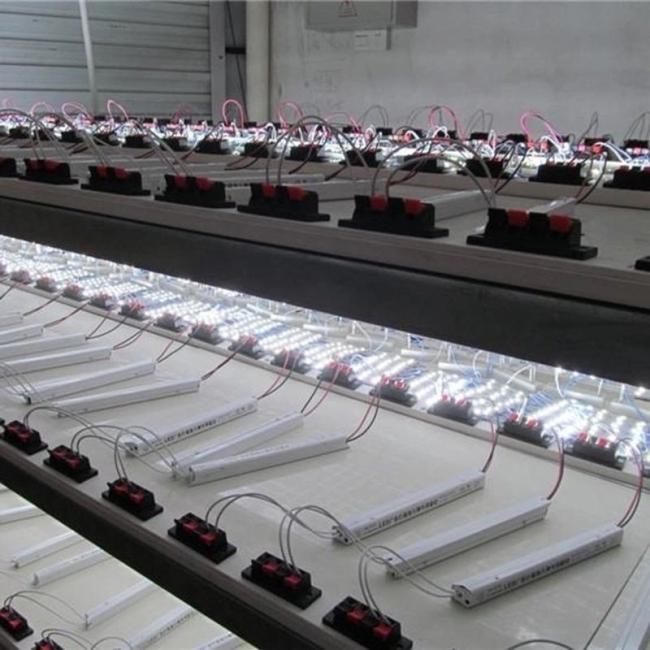

- 100% full load burn-in test
- Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ. Widely used in LED lighting and IT equipment
- IS 15885(Part2/Sec13)
- Compliance to worldwide safety regulation for led lightings.
FAQ
Q1. Can I have a sample order for led strip light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-7 days, mass production time needs 4-5 weeks.
Q3. Do you have any MOQ limit for led strip light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
