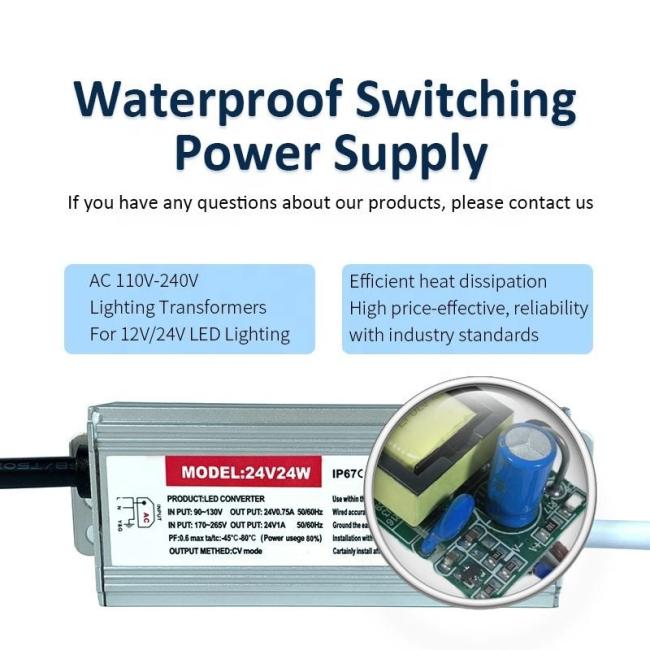

24w 100w 200w 12v 24v Led Strip Waterproof Switching Power Supply IP67
60 Watt LED Power Supply 12V DC Output Led Strip Power Supply
Features :
- Universal input voltage 120-277 Vac
- Constant voltage options 12/24/36/48V
- PFC, Flicker Free and Isolated design
- 3-in-1 dimming (PWM/1-10V/Resistor)
- Open/Short/Over-Voltage/Over-Temperature protection
- 2kV to 6kV surge protection
- Suitable for UL dry and damp location
- 5 years warranty
Function options:
output adjustable via potentiometer; 3 in 1 dimming (0~10Vdc or 10V PWM signal or resistance, dim-to-off); smart timer dimming; DALI; auxiliary DC output (ELG-150 BE-Type)
Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries
Suitable for LED street lighting and outdoor LED lighting
5 years warranty

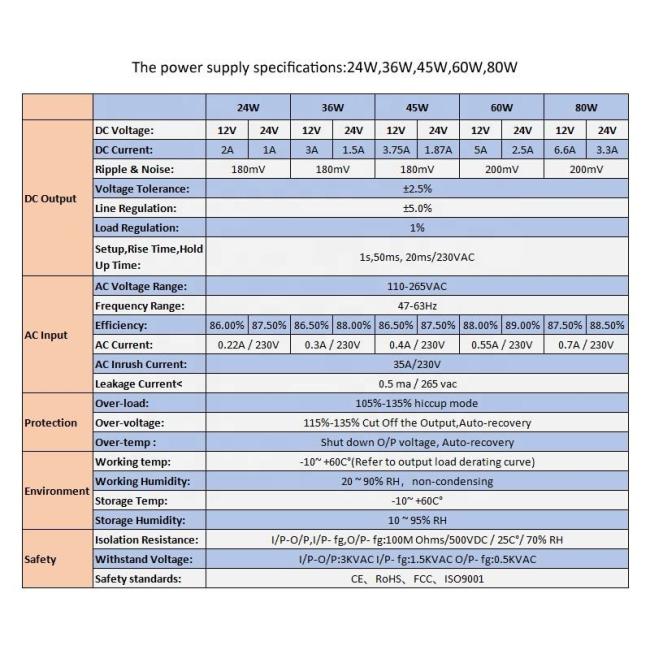

Specification
| Output Power: | 1 - 400W | Input Volage: | AC 110V-220V |
| Output Type: | Single | Output Volage: | 12V/24V |
| Input Voltage: | AC 110V-220V | Efficiency: | 0.92 |
| Output Voltage: | 24V | Product Name: | 12V 24V Swtiching Power Supply |
| Output Frequency: | 50hz | Application: | LED Lighting |
| Output Current: | 1A,2A,3A,5A,6.6A,8.3A,12.5A,16.6A,20.8A,25A,33.3A | Warranty: | 5 Years |
| Power: | 24w/36w/45w/60w/80W/100W/150W/200W/250W/300W/400W | Certification: | CE ROHS |
| Keyword: | Switiching Power Supply 12V 24V | Type: | Constant Voltage |
.
Model Series | AV12S60D | |
AC Input | Input Voltage | 120-277 Vac |
Input Frequency | 60Hz | |
Leakage Current | <0.75mA | |
Turn On Time | <1s | |
Inrush Current | <45A | |
Power Factor | >0.9 | |
THD | <20% | |
DC Output | Output Current | 0.5-5A |
Output Voltage | 12V | |
Output Power | 60W | |
Line Regulation | ±5% | |
Efficiency @Highest Vin | 85% | |
Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. |
Over-Voltage | Output current decade mode, recovers automatically after fault condition is removed. | |
Over-Temperature | Shut down o/p voltage, re-power on to recover. | |
Surge | 2kV | |
Environment | Operation Temperature | Tcase -40°C~90°C |
Storage Temperature | Tcase -40°C~90°C | |
Humidity | 10%~90% | |
Safety | Safety Approval | UL8750 UL1310 |
UL/cUL Class 2 | V | |
UL/cUL Type TL | - | |
Withstand Voltage | I/P-O/P: 2.0K Vac, I/P-FG: 2.0K Vac, O/P-FG: 0.5K Vac | |
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100Mohm/500VD | |
Noise | Sound Rating Class A | |
EMC | EMI | FCC Part 15 class A, UL8750, CSA C22.2 No. 250.13-14, ICES-005 Issue 4 |
EMS | FCC Part 15 class A, UL 8750, ICES-005 Issue 4 | |
FAQ
Q1. Can I have a sample order for led strip light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-7 days, mass production time needs 4-5 weeks.
Q3. Do you have any MOQ limit for led strip light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
