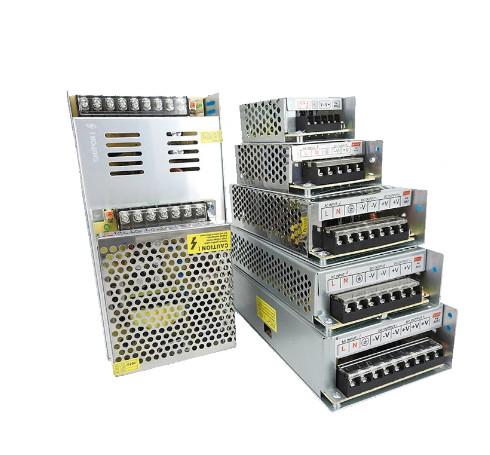

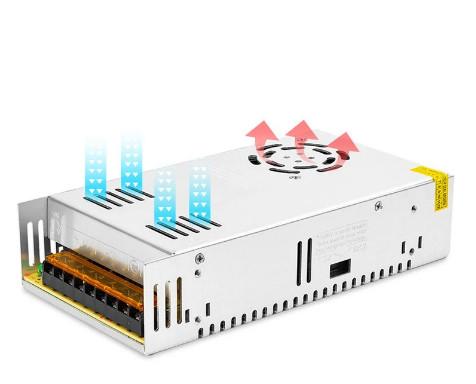

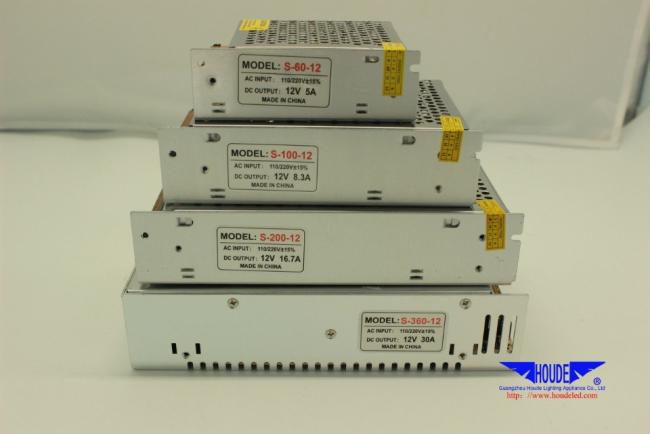

110V / 220V To 5V 12V 24V LED Power Supply Switching Power Supply
Switching Power Supply 110V/ 220V To 5V 12V 24V 48V Led Power Supply
So how do I know what type of LED driver I need?
The case for constant current drivers:
If you take a look at high powered LEDs, one unique characteristic is the exponential relationship between the applied forward voltage to the LED and the current flowing through it. You can see this clearly from the electrical characteristics of the Cree XP-G2 below in Figure 1. When the LED is turned on, even the smallest 5% change in voltage (2.74V to 2.87V) can create a 100% increase in current driven to the XP-G2 as you can see at the red marks current went from 350mA to 700mA.
Specification
| Product Name: | Waterproof Power Supply | Output Power: | 60W, 100W, 150W, 200W, 250W, 300W |
| Type: | Constant Voltage | Output Type: | Single / DUAL |
| Warranty: | 3 Years | Input Voltage: | 100-260V & 180-260V |
| Application: | LED Lighting | Output Voltage: | 12V / 24V |
| Protections: | Short-circuit, over-voltage, over-current and overload | Output Frequency: | 50/60Hz |
| Efficiency: | 0.86 | Output Current: | 2.5A - 25A |
| IP Rate: | IP67 Waterproof | Condition: | Outdoor & Indoor use |
| Material: | Aluminum Housing | Certification: | CE RoHS |
| DC output voltage | 5V | 12V | 15V | 24V |
| Output voltage tolerance | ±2% | ±1% | ±1% | ±1% |
| Rated output current | 24A | 10A | 8A | 5A |
| Output current range | 0-24A | 0-10A | 0-8A | 0-5A |
| Ripple and noise | 50mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.3% | ±0.2% |
| Load stability | ±1% | ±0.5% | ±0.3% | ±0.2% |
| DC output power | 120W | 120W | 120W | 120W |
| Efficiency | 79% | 84% | 85% | 85% |
| Output voltage adjustment range | ±15% | ±15% | ±15% | ±15% |
| AC input voltage range | 110-220V | |||
| Input current | 0.6A/115V 0.35A/230V | |||
| AC impulse current | Cold-start current 15A/115V 30A/230V | |||
| Leakage current | <0.75mA/240VAC | |||
| Overload protection | 105%~150% Type,PULSING HICCUP SHUTDOWN,Reset,auto recovery | |||
| Over-voltage protection | 115%~135% rated output power | |||
| Temperature coefficient | ±0.03%°C(0~50°C) | |||
| Setup rise hold up time | 800ms,50ms,20ms/115VAC 300ms,50ms,80ms/230VAC | |||
| Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,Each axes | |||
| Withstand voltage | I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ | |||
| Working temperature and humidity | -10°C~+60°C,20~90%RH | |||
| Store temperature and humidity | -20°C~+85°C,10~95%RH | |||
FAQ
1) Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. mixed samples are acceptable.
2) Q: What is the lead time?
A: Samples need 2-3 working days, mass products need 3-5 days(According to your quantity.)
3) Q: How do you ship the goods and how long does it take arrive>
A: Express ( DHL/UPS/ FedEx/ TNT). Air or Sea shipment is available depends on your need.
It usually takes 3-5 days to arrive except Sea transportation.
4) Q: How to precede the order if i have logo to print?
A: Firstly, we will prepare artwork for visual confirmation,
and next we will produce a real for your second confirmation,
if mockup is ok, finally we will go to mass production.
5) Q: How to deal with the faulty?
A: Firstly, our defective rate is less than 0.2%, so there is no big problem to the lihght.
Secondly, we usually offer 3-5 years warranty for our lights
Tirdly, duringthe guarantee period, we will resend new lights with the new order for small quantity,
if there are many lights don't work, we can repair them, then resend them to you.
