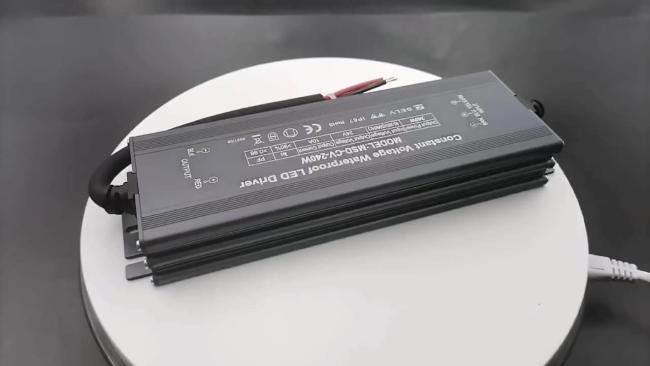

200W 24V LED Power Supply Rainproof Switching Power Supplies 12v 24V 48V LED Driver
200W LED Switch Power Supply Rainproof Switching Power Supplies 12v 24V 48V LED Driver
Advantage of using a constant current LED driver
So when you’re building your own fixture or working with our high powered LEDs, it is of your best interest to use constant current drivers because:
They avoid violating the maximum current specified for the LEDs, therefore avoiding burnout/thermal runaway.
They are easier for designers to control applications, and help create a light with more consistent brightness.
Specification
| Application: | Electric Power DC,LED Lighting | Shell: | Aluminum Metal Case |
| Output Power: | 101 - 200W | power factor: | 0.9 |
| Output Type: | Single | Efficiency: | 0.85 |
| Input Voltage: | 100-277V | Protections: | OPP OVP SCP OCP |
| Output Voltage: | 24V | Weight: | 1kg |
| Output Frequency: | 200W | Size: | 236*68*39mm |
| Output Current: | 16.7A | Working temperature: | -90 |
| DC output voltage | 5V | 12V | 15V | 24V |
|
Output voltage tolerance |
±2% | ±1% | ±1% | ±1% |
| Rated output current | 24A | 10A | 8A | 5A |
| Output current range | 0-24A | 0-10A | 0-8A | 0-5A |
| Ripple and noise | 50mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.3% | ±0.2% |
| Load stability | ±1% | ±0.5% | ±0.3% | ±0.2% |
| DC output power | 120W | 120W | 120W | 120W |
| Efficiency | 79% | 84% | 85% | 85% |
| Output voltage adjustment range | ±15% | ±15% | ±15% | ±15% |
| AC input voltage range | 110-220V | |||
| Input current | 0.6A/115V 0.35A/230V | |||
| AC impulse current | Cold-start current 15A/115V 30A/230V | |||
| Leakage current | <0.75mA/240VAC | |||
| Overload protection | 105%~150% Type,PULSING HICCUP SHUTDOWN,Reset,auto recovery | |||
| Over-voltage protection | 115%~135% rated output power | |||
| Temperature coefficient | ±0.03%°C(0~50°C) | |||
| Setup rise hold up time | 800ms,50ms,20ms/115VAC 300ms,50ms,80ms/230VAC | |||
| Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,Each axes | |||
| Withstand voltage | I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ | |||
| Working temperature and humidity | -10°C~+60°C,20~90%RH | |||
| Store temperature and humidity | -20°C~+85°C,10~95%RH | |||
Advantages
1.Automatic equipment: EMI device , oscilloscope, automatic glue filling machine, intelligent electronic aging test frame, SMT
machine, wave soldering machine.
2.Reasonable price with good quality and best delivery time.
3.We have a strong R & D team to help customer develop new and stable products
4.Certificate:UL,CB report,CE,RoHS,SAA,C-Tick,RCM,TUV,ETL,CCC
5.Industrial switching power supplys for IT/communication areas,motor and other equipments
FAQ
Q1.Can I have a sample order for led driver?
A:Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
Q2.Do you have any MOQ limit for the led driver?
A:Low MOQ,1PCS for sample checking is available.
Q3:Is it OK to print my logo on led product?
A:Yes.Please inform us formally before our production and confirm the design firstly based on our sample.
Q4:Do you offer guarantee for the products?
A:Yes,we offer 2years warranty to our products.
Q5: How to deal with the faulty?
A:Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
