60W 100W 150W 200W 250W 0 10V LED Driver Dimmable CV LED Power Supply LED Driver
60W 100W 150W 200W 250W 0 - 10V Dimmable CV LED Power Supply LED Driver
Product Description
Metal housing LED power supply for indoor use. Also known as industrial power supplies, these transformers are suitable for up to
24 hours of use. Suitable for 12V or 24V led strip operation. It is important that the LED power supply is not overloaded, up to a
maximum of 80-85% of the rated power. The power supply has a terminal block through which it can be connected to both the mains
and the LED strip.
Product Feature
96W Dynamic White LED Driver for Dim to Warm Applications
LED Driver is a power supply designed for dual circuit, three wire LED strips to function in dim to warm applications. It provides the flexibility to select the appropriate light by transitioning from a cooler white to a warm dim lower level.

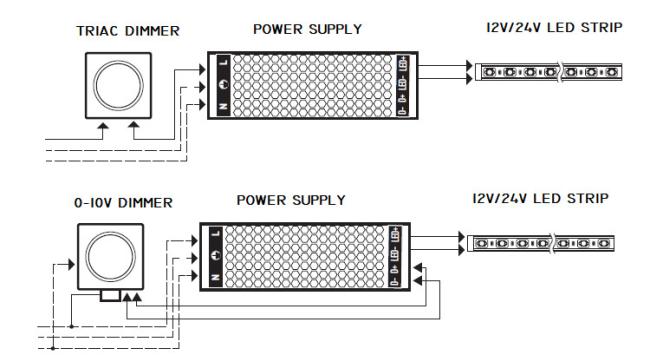

Can be controlled via forward or reverse phase or 0-10v dimming. The Pulse Width Modulation (PWM) output provides smooth flicker free dimming. When using phase control, a dimmer with a neutral is recommended for best performance. The driver has a universal primary input providing a 24VDC output and has a capacity of 96 watts and is listed for interior or exterior use.

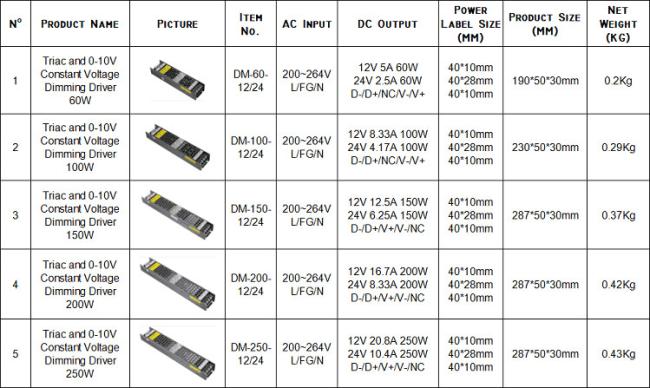

Product Specification
|
Output
|
DC voltage
|
12V
|
24V
|
|
Rated Current
|
5A
|
2.5A
|
|
|
Current Range
|
0-5A
|
0-2.5A
|
|
|
Rated Power
|
60W
|
60W
|
|
|
Ripple and Noise(Max)Note.2
|
150mVp-p
|
240mVp-p
|
|
|
Voltage adjustment
|
10.8-13.2V
|
22-27.6V
|
|
|
Voltage Accuracy Note3
|
±1%
|
±1%
|
|
|
Linear Adjustment Note4
|
±0.5%
|
±0.5%
|
|
|
Load Adjustment Note5
|
±0.5%
|
±0.5%
|
|
|
Start and rise time
|
1000ms,30ms/230VAC 1000ms,30ms/110V
|
||
|
Hold time(Typ)
|
50ms/230VAC 10ms/115AC
|
||
|
Input
|
Voltage range
|
87-264VAC
|
|
|
Frequency range
|
50HZ
|
||
|
Efficiency(Typ)
|
80%
|
82%
|
|
|
AC current (Typ)
|
0.92A/90V 0.38A/220V
|
||
|
Surge current (Typ)
|
Cold Start:65A/230VAC
|
||
|
Current leak
|
<2mA/240VAC
|
||
|
Protection
|
Overload
|
Larger than 105% of capacity
|
|
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed
|
|||
|
Overvoltage
|
|
|
|
|
Protection type :Shut down O/P voltage,re-power on to recover
|
|||
|
Overheat
|
|
||
|
|
|||
|
Environment
|
Working temp.
|
-20～+60℃(Refer to the tenuation curve)
|
|
|
Working humidity
|
20～90% RH, without condense
|
||
|
Storage temp & hmdty
|
-40～+80℃
|
||
|
Temp. coefficient
|
±0.03%/℃ (0～50℃)
|
||
|
Vibration proof
|
10～500HZ,5G 10min / cycle,X,Y,Z axes 60 min each
|
||
|
Safety reg. & EMC (Note.6)
|
Safety regulation
|
GB195110.1-2004/IEC61347-1:2003 CE(EMC+LVD)
|
|
|
Voltage proof
|
I/P-O:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
||
|
insulation resistance
|
I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/70% RH
|
||
|
EMC irradiation
|
EN 55032A:2006;EN61000-3-2:1995+A2:2005
|
||
|
EMC disturbance proof
|
EN 61000-3-2:2006;
|
||
|
|
Dimensions
|
185*50*30mm(L*W*H)
|
|
|
Packing
|
0.176kg/PCS;100PCS/17.6kg
|
||
|
Notes:
|
1. All parameters NOT specially mentinoed are measured at 230VAC input, rated load and 25℃ of ambient temperature.
|
||
|
2.Ripple and noise are measured at 20MHz bandwidth by using a 12” twisted pair-wire terminated with a 0.1μF and a 47 μF parallel
capacitor. |
|||
|
3.Accuracy: including preset errors, linear adjustment rate and load adjustment rate.
|
|||
|
4.Linear adjustment: taken under rated load from low voltage to high voltage.
|
|||
|
5.Load adjustment: taken under 0~100% of rated load.
|
|||
|
6. The power supply is taken as part of the whole system, and needs to be confirmed with final equipment for EMC.
|
|||
What is your advantages?
1. OEM/ODM is welcome, over 15 years of experence.
2. High efficiency, low power consumption led light driver.
3. CE(TUV),RoHs, SAA, C-tick,RCM, FCC and ETL approved.
4. Stable quality, burn-in tests with 100% full load for more than 4 hours.
5. Over-heat, over-load, short-circuit & open-circuit protection.
6. Offer 3 or 5 years warranty and maintain our repair rate below 0.3%.
7. We will apply 0.3% spare parts on bulk orders.
8. Professional team will follow the whole after-sale.
FAQ
Q1:Are you a manufacturer?
A: Yes, we are the manufacturer.We have one factory in Shenzhen, Guangdong, China.
Q2:Can I get sample?
A: Sure, If you need sample, pls tell me your spec need, or tell me your led light info, then i will recommend you
suitable led driver with good price, after confirm details, we will arrange the samples for you to test. Welcome sample
order to test and check quality.
Q3:Is it OK to print my logo on led driver & light product and use my own package and trade mark?
A: Yes. Normally we offer white inner box and carton box. Use your own design is ok. Please inform us
formally before our production and confirm the design firstly based on our sample.
Q4: Does your company accept OEM&ODM?
A: Yes, welcome OEM&ODM.
