JIS DC53 Mould Steel DIN 17350 X48CRMOV8-1-1 Wire Rod Grinding
W-Nr 1.2360 Mould Steel X48CRMOV8-1-1 Wire Rod JIS DC53 Square Bar
Describe
1.2360/ X48CrMoV8-1-1 has increased chromium content and is an alloy tool steel with average strength, high hardness, high ductility and high wear resistance. Used in the manufacture of precision woodworking tools, the increased vanadium content provides high hardenability, which makes it possible to achieve hardness in the range of 60 HRC.
Size Range
- Material:Metal, Structural Steel Round Bar, P20+S Tool Steel Round Bar
- Shape:Tool Steel
- Round bar / Wire rod (Diameter): 5.5mm to 800mm
- Square bar / Flat bar: 3mm to 800mm

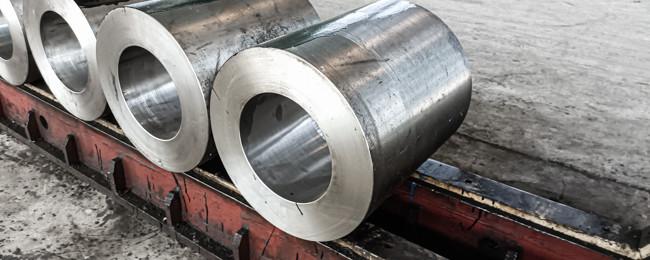

- Forging piece: stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.
- Heavy/middle plate via hot rolled: T6 - 200mm X W10 - 1500mm X L1000-12000mm
- Length: Fixed length or random length or based on the customer's special requirement.
Chemical Composition and standard
| Grade |
X48CRMOV8-1-1 W-Nr 1.2360 |
JIS DC53 |
| standard | DIN 17350 (1980) | -- |
| Chemical Composition (weight%) |
C(％): 0.45~0.50 Si(％): 0.70~0.90 Mn(％): 0.35~0.45 S(％)≤: 0.005 Ni(％): -- |
C(％): 1.0 Si(％): 1.0 Mn(％): 0.4 S(％)≤: -- Ni(％): - - |
| Other |
V(％): 1.30~1.50 |
V(%): 0.3 |
Mechanical Properties
X165CrMoV 12, W-Nr 1.2601 mould Steel Mechanical Properties
| Tensile strength,Rm/MPa: | ≥727 |
| Yield strength,Rp/MPa: | ≥516 |
| Elongation/%: | 13 |
| Reduction of area, ψ/%: | 22 |
| Impact, KV /J: | 12 |
Applications
Forming dies, stamping dies, die inserts, extrusion dies, cold extrusion tools, pipe tools, blanking tools, stamping tools, embossing tools, cutting tools, industrial tools, wood chip cutting tools, veneer tools, reinforcements.
