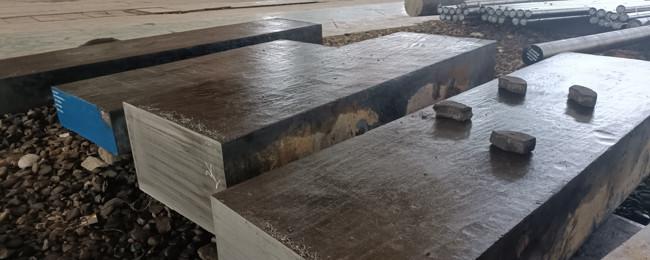

AISI 07 UNS T31507 Mould Steel 105WCr6 W-Nr 1.2419 Square Steel Rod
AISI 07 UNS T31507 Mould Steel 105WCr6 W-Nr 1.2419 Square Steel Rod
Describe
1.2419 steel is an oil-hardening tool steel supplied in the annealed condition characterized by good durability. 1.2419 steel has excellent wear resistance and ability to maintain a good cutting edge.
Size Range
| Round bar / Wire rod (Diameter) | 5.0mm to 700mm |
| Square bar / Flat bar | 3.6mm to 900mm |
| Forging piece |
Stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM. |
| Heavy/middle plate via hot rolled | T6 - 150mm X W10 - 1550mm X L1000-13000mm |
|
T0.5 - 6mm X W6 - 1000mm X L1000 - 2000mm |
|
T0.1 - 3.5mm X W5 - 180mm X L (or in coil form) |
| Length | Fixed length or random length or based on the customer's special requirement. |
Chemical Composition and standard
| Grade |
AISI 07 / UNS T31507 |
105WCr6 / W-Nr 1.2419 | JIS SKS31 | NF 105WC13 |
| standard | -- |
EN ISO 4957: 2000, DIN 17350 |
-- | -- |
| Chemical Composition (weight%) |
C(％): 1.1~1.3 Si(％): 0.2~1.0 Mn(％): 0.1~0.6 S(％)≤: 0030 Ni(％): -- W(％): 1.00~2.00 V(％): 0.15~0.40 |
C(％): 1.0~1.1 Si(％): 0.10~0.40 Mn(％): 0.80~1.10 S(％)≤: 0.030 Ni(％): -- W(％): 1.00~1.30 |
C(％): 0.95~1.05 Si(％): ≤ 0.35 Mn(％): 0.9~1.2 S(％)≤: 0.03 Ni(％): -- W(％): 1.0~1.5 |
C(％): 1.00~1.15 Si(％): 0.7~1.0 Mn(％): 0.10~0.40 S(％)≤: 0.025 Ni(％):-- Mo(％): -- W(％): 1.0~1.6 |
Mechanical Properties
105WCr6 / W-Nr 1.2419 mould Steel Mechanical Properties
| Tensile strength,Rm/MPa: | -- |
| Yield strength,Rp/MPa: | -- |
| Elongation/%: | -- |
| Reduction of area, ψ/%: | -- |
| Impact, KV /J: | -- |
