AMS 5598E UNS N07750 Alloy Round Bar NiCr15Fe7TiAl W-Nr 2.4669 Solid Round Bar
AMS 5598E UNS N07750 Alloy Round Bar NiCr15Fe7TiAl W-Nr 2.4669 Solid Round Bar
Size Range
|
Round bar / Wire rod (Diameter): 5.0 mm to 1000 mm |
|
|
Square bar / Flat bar: 5.0 mm to 1000 mm |
|
|

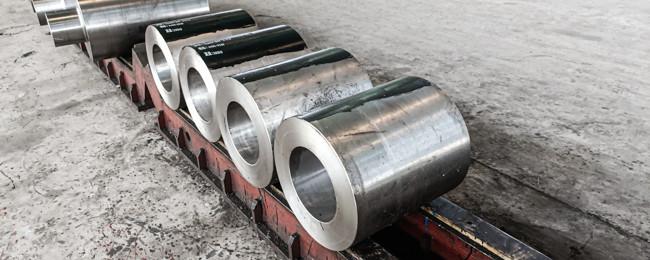

Forging piece: Stepped shafts with flanks /discs /tubes /slugs /donuts /cubes /other different shapes based on OEM. |
|
|
Heavy/middle plate via hot rolled: T5 - 500 mm X W5 - 1000 mm X L1000-10000 mm |
|
|
Sheet steel via cold rolled: T0.3 - 5.0 mm X W5 - 1000 mm X L1000 - 10000 mm |
|
|
Steel strip via cold rolled: T0.3 - 10.0 mm X W5 - 1000 mm X L (or in coil form) |
|
|
Length: Fixed length or random length or based on the customer's special requirement. |
Chemical Composition and standard
|
AMS 5598E |
NiCr15Fe7TiAl/2.4669 |
UNS N07750 |
| SAE AMS 5598E-2007 |
DIN EN 10269-2014 |
ASTM B 637-2018 |
|
C: ≤0.08 Si: ≤0.35 Mn: ≤0.35 P: ≤0.015 S: ≤0.010 Cr: 14.0~17.0 Ni: ≥70.0 Mo: -- Nb: 0.70~1.20 Ta: ≤0.05 Cu: ≤0.50 Fe: 5.0~9.0 Ti: 2.25~2.75 Al: 0.4~1.0 |
C: ≤0.08 Si: ≤0.5 Mn: ≤1.0 P: ≤0.020 S: ≤0.015 Cr: 14.0~17.0 Ni: ≥70.0 Mo: -- Cu: ≤0.5 Fe: 5.0~9.0 Ti: 2.25~2.75 Co: ≤1.0 Al: 0.4~1.0 Nb+Ta: 0.70~1.20 |
C: ≤0.08 Si: ≤0.5 Mn: ≤1.0 P: -- S: ≤0.010 Cr: 14.0~17.0 Ni: ≥70.0 Mo: -- Cu: ≤0.5 Fe: 5.0~9.0 Ti: 2.25~2.75 Nb: 0.5~2.5 Co: ≤1.0 Al: 0.4~1.0 Nb+Ta: 0.70~1.20 |
Mechanical Properties
X35CrWMoV5/1.2605 Alloy Round Bar Mechanical Properties
| Tensile strength, Rm/MPa: 1000~1200 | |
| Yield strength, Rp/MPa: ≥650 | |
| Elongation, A/%: ≥ 20 | |
| Reduction of area, ψ/%: ≥28 | |
| Impact, KV /J: ≥22 | |
| Annealed hardness HBW: -- |
