Product Information
NiCo20Cr20MoTi (UNS N07263/Nimonic C-263) is a precipitation hardenable nickel chromium diamond alloy with the addition of platinum for solution strengthening. It has high strength and corrosion resistance in welded structures, as well as good formability and high-temperature ductility.
Size Range

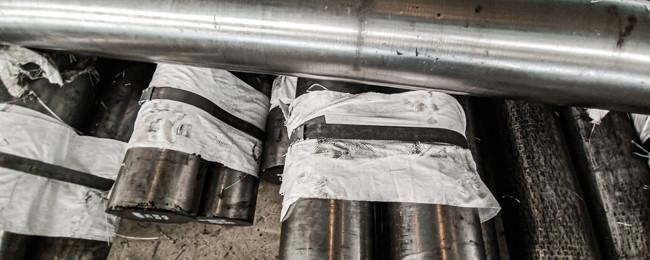

Round bar / Wire rod (Diameter): 3.0 mm to 500 mm
Square bar / Flat bar: 5.0 mm to 500 mm
Forging piece: Stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.
Heavy/middle plate via hot rolled: T3 - 1000 mm X W8 - 1000 mm X L800-12000 mm
Sheet steel via cold rolled: T5.0 - 8 mm X W5 - 1000 mm X L100 - 1000 mm
Steel strip via cold rolled: T0.5 - 8 mm X W10 - 1000 mm X L (or in coil form)
Length: Fixed length or random length or based on the customer's special requirement.
Chemical Composition and standard
|
|
Nimonic C-263 / UNS N07236 |
NiCo20Cr20MoTi |
|
DIN 17750-2002 |
-- |
NF EN 10302-2002 BS EN 10302-2002 |
|
Cu(％): ≤0.2 Fe(％): ≤0.7 Ti(％): 1.9~2.4 B(％): ≤0.005 Co(％): 19.0~21.0 Al(％): 0.3~0.6 Ti+Al(％): 2.4~2.8
|
C(％): 0.04~0.08 Cu(％): ≤0.2 Fe(％): ≤0.7 Ti(％): 1.9~2.4 B(％): ≤0.005 Co(％): 19.0~21.0 Al(％): 0.3~0.6 Ti+Al(％): 2.4~2.8 Pb(％): ≤0.002 Bi(％): ≤0.0001 Ag(％): ≤0.0005
|
C(％): 0.04~0.08 Cu(％): ≤0.2 Fe(％): ≤0.7 Ti(％): 1.9~2.4 B(％): ≤0.005 Co(％): 19.0~21.0 Al(％): 0.3~0.6 Ti+Al(％): 2.4~2.8
|
X120Mn12/1.3401 Mechanical Properties
Tensile strength, Rm/MPa: ≥970
Yield strength, Rp/MPa: ≥570
Elongation/%: ≥30
Reduction of area, ψ/%: --
Impact, KV /J: -
Hardness, HBW: --
Applications
Mainly used for manufacturing turbine components.
