UNS S17600 Stainless Steel Sheets Plates AISI 635 Forging Piece
UNS S17600 Stainless Steel Sheets Plates AISI 635 Forging Piece
Product Information
AISI 635 stainless steel is a high-strength, high-corrosion-resistant stainless steel material belonging to the austenitic series. It is an excellent high-temperature strength steel with good oxidation resistance and thermal stability at high temperatures, as well as good mechanical and corrosion resistance properties.
Size Range
Round bar / Wire rod (Diameter):10.0 mm to 500 mm
Square bar / Flat bar: 5.0 mm to 500 mm

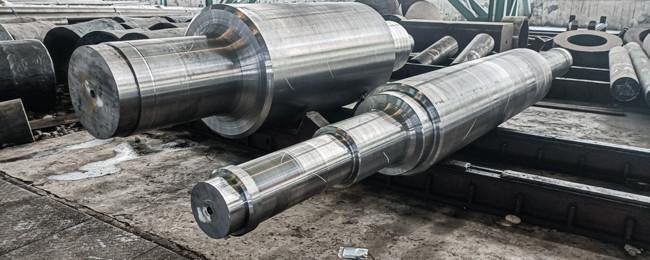

Forging piece: Stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.
Heavy/middle plate via hot rolled: T3 - 1000 mm X W10 - 1000 mm X L800-12000 mm
Sheet steel via cold rolled: T3.0 - 10 mm X W5 - 1000 mm X L100 - 1000 mm
Steel strip via cold rolled: T0.5 - 10 mm X W10 - 1000 mm X L (or in coil form)
Length: Fixed length or random length or based on the customer's special requirement.
Chemical Composition and standard
|
AISI 635 / UNS S17600 |
| DIN EN 10084-2008 |
|
C(％): ≤0.08 Al(％): ≤0.40 Ti(%): 0.40~1.20
|
Mechanical Properties
Tensile strength, Rm/MPa: ≥ 1680
Yield strength, Rp/MPa: ≥ 1500
Elongation/%: ≥ 3.50
Reduction of area, ψ/%: --
Impact, KV /J: --
Hardness, HBW: ≤498
| Condition | +A (1040±15℃) | Condition: H950 | Condition: H1000 | Condition: H1050 |
| Tensile strength, Rm/MPa | ≥925 | ≥1310 | ≥1240 | ≥1170 |
| Yield strength | ≥515 | ≥1170 | ≥1100 | ≥1035 |
| Elongation/% | ≥10 | ≥8 | ≥8 | ≥10 |
| Reduction of area, ψ/% | ≥45 | ≥25 | ≥30 | ≥40 |
| Hardness, HB | ≥302 | ≥363 | ≥352 | ≥331 |
Applications
AISI 635 stainless steel is widely used in industrial equipment and chemical equipment under high temperature, high pressure, and corrosive environments, such as furnaces, heat exchangers, steam generators, chemical reactors, etc. It is also used to manufacture high-temperature engine components and aircraft engine turbine blades in the aerospace industry.
