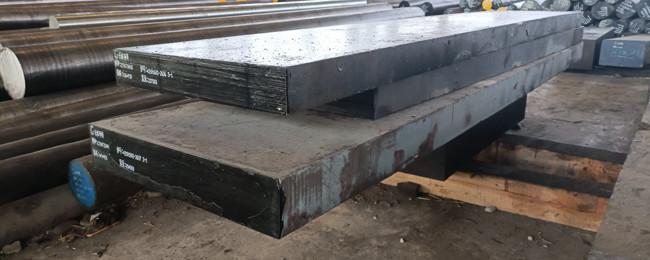

UNS S46910 Polished Stainless Steel Flat Bar
UNS S46910 Polished Stainless Steel Flat Bar
Product Information
UNS S46910 is a UNS number for stainless steel material, it is also known as PH 15-7 Mo stainless steel. This stainless steel has excellent strength, corrosion resistance, and stress corrosion cracking resistance, making it suitable for a variety of industrial and aerospace applications.
Size Range
Round bar / Wire rod (Diameter):1.0 mm to 800 mm
Square bar / Flat bar: 1.0 mm to 800 mm
Forging piece: Stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.
Heavy/middle plate via hot rolled: T7.0 - 1000 mm X W10 - 1000 mm X L100-1000 mm
Sheet steel via cold rolled: T5.0 - 10 mm X W3 - 1000 mm X L100 - 800 mm
Steel strip via cold rolled: T5.0 - 10 mm X W1.0 - 1000 mm X L (or in coil form)
Length: Fixed length or random length or based on the customer's special requirement.
Chemical Composition and standard
|
UNS S46910 |
Mechanical Properties |
| ASTM A564/A564M-2019 | |
|
C(％): ≤0.03 Cr(％): 11.0~13.0 Cu(%): 1.50~3.50 Al(%): 0.15~0.50
|
CW 1/2 hard+aging Tensile strength,Rm/MPa: ≥ 1690
CW full hard+aging Tensile strength, Rm/MPa: ≥2205 Yield strength, Rp/MPa: ≥2005 Hardness HB: ≤561 |
Applications
UNS S46910 stainless steel is widely used in aerospace, chemical industry, marine engineering, medical equipment and high-performance equipment and other fields
