AMS 5686 Superalloy Sheet Steel
AMS 5686 Superalloy Sheet Steel
Product Information
AMS 5686 steel has good high-temperature strength and oxidation resistance, and can operate for a long time without failure at high temperatures. Its high-temperature strength is higher than many other steels and can be used in high-temperature environments exceeding 1000 ℃. At the same time, AMS 5686 steel also has good corrosion resistance and superior performance when used in some chemically corrosive environments.
Size Range
Round bar / Wire rod (Diameter):1.0 mm to 1100 mm
Square bar / Flat bar: 1.0 mm to 1000 mm

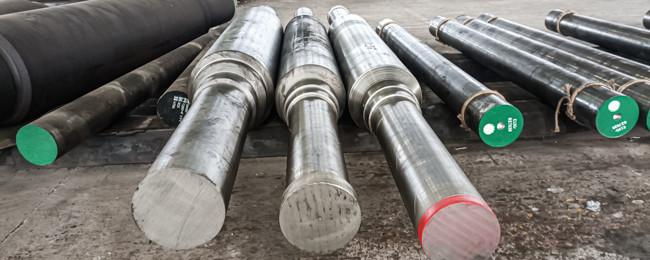

Forging piece: Stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.
Heavy/middle plate via hot rolled: T5.0 - 1500 mm X W3 - 1000 mm X L100-1000 mm
Sheet steel via cold rolled: T1.0 - 10 mm X W1 - 1000 mm X L100 - 800 mm
Steel strip via cold rolled: T3.0 - 10 mm X W1.0 - 1500 mm X L (or in coil form)
Length: Fixed length or random length or based on the customer's special requirement.
Chemical Composition and standard
|
AMS 5686 |
Mechanical Properties |
| SAE AMS 5686G | |
|
C(％): ≤0.08 Cr(％): 17.0~19.0 Cu(%): ≤0.50
|
Tensile strength,Rm/MPa: ≤758 Elongation, A/%: - Reduction of area, ψ/%: - Hardness HRC: -
|
Applications
AMS5686 is mainly used for manufacturing high-temperature mechanical components such as aviation engine components, turbine blades, and turbine discs
If you are interested in our products or have any questions, please contact our team of engineers at
