Nimonic 80A Steel Forging Bar Superalloy Hot Forged Piece HEV5 NiFi25Cr20NbTi ESR
Nimonic 80A Superalloy Forging Piece HEV5 Forgings Hot forged NiFi25Cr20NbTi ESR
Description
Our company provides HEV5 Superalloy Forging Piece Nimonic 80A Forgings Hot forged NiFi25Cr20NbTi ESR SAE J775-1993
All of HEV5 Superalloy Forging Piece Nimonic 80A Forgings Hot forged NiFi25Cr20NbTi ESR SAE J775-1993 conform to Military standard, nuclear power. 100% Ultrasonic test
- Material:Metal,Superalloy Forging Piece,HEV5,Nimonic 80A,NiFi25Cr20NbTi.
- Executive Technical Standards: GB / ISO / DIN / NF / BV / BS / JIS / JASO / NDS / ASTM / SAE / UNS / AISI etc.
- Metal Type:Superalloy series.
- Shape:Superalloy Forging Piece.

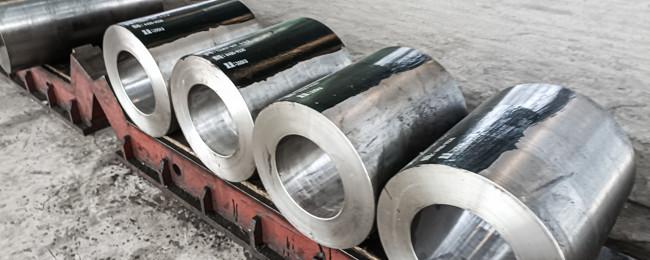

- Forging piece: stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.
- Length: Fixed length or random length or based on the customer's special requirement.
- Surface:Black,Bright or According To Customer Demand.
- High Light:Superalloy Forging Piece,HEV5,Nimonic 80A,NiFi25Cr20NbTi.
Packing details:
Products are well packed and clear labeled according to the regulations and customer's requests.
Intact packages are able to avoid any damage which might otherwise be caused during storage or transportation.
Products Details
ASTM 8620H Structural Steel Forging Piece UNS H86200 Forgings 1.6523 ESR ASTM A304-2004
| Chemical Composition (weight%): | Mechanical Properties Under Final Heat Treatment: |
| C (％): ≤ 0.10 Si (％): ≤ 1.00 Mn (％): ≤ 1.00 P (％)≤: 0.020 S (％)≤: 0.015 Cr (％): 18.0 ~ 21.0 Ni (％): Balance Ti (％): 1.80 ~ 2.70 Al (％): 1.00 ~ 1.80 Others (%): Co ≤2.00, Cu ≤0.20,Fe ≤3.00, B ≤0.008,Zr ≤0.15 |
Condition: heat treatment Tensile strength, σb/MPa: 1130 Min. Yield strength, σ0.2≥/MPa: 985 Elongation, δ5≥(％): 5.0 Reduction of area, ψ≥(％): - Hardness ≥: - |
Applications:
Driveshafts
Gears
Fasteners
Landing and takeoff gear
Missile and ejector systems
Torsion springs
| Technical Standard | Equivalent Grade |
| DIN EN 10090(1998) |
NiFi25Cr20NbTi |
| Nimonic 80A | |
| SAE J775 | HEV5 |
FAQ
Q: How do you control the quality?
A: We have professional inspectors to analyze the chemical composition of raw materials and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends, bending, set length, outer diameter and Wall thickness will be checked one by one. You can rest assured that all products you receive from us are reliable.
Q: Do you accept customization?
A: Yes. If you have special requirements for products or packaging, we can make them for you.
Q: Can you accept trial orders?
A: Our MOQ is usually 1 ton. However, if you want to place an order as the start of our cooperation, we can accept smaller quantities at the first time. Of course, after the start, we will have further and longer cooperation.
Q: How do I get samples?
A: Free samples are available for your inspection and testing, DHL/FedEx/UPS accounts can be used for sampling, and the courier fee is borne by you.
