ASTM 405 Turbine Blade Steel X6Cr13 1.4000 DE12-0621 Bar AISI 405 S40500 Round Flat Bar
ASTM 405 Turbine Blade Steel AISI 405 Round Bar UNS S40500 Flat Bar X6Cr13 1.4000 DE12-0621 Bar
Description
Our company provides ASTM 405 Turbine Blade Steel AISI 405 Round Bar UNS S40500 Flat Bar X6Cr13 1.4000 DE12-0621 Bar ASTM A959-2004.
All of ASTM 405 Turbine Blade Steel AISI 405 Round Bar UNS S40500 Flat Bar X6Cr13 1.4000 DE12-0621 Bar ASTM A959-2004 conform to Military standard, nuclear power. 100% Ultrasonic test ASTM E2375 /SAE AMS 2154 /SEP 1923 /GB/T 4162 /EN 10228-3.
- Material:Metal,Turbine Blade Steel,ASTM 405,AISI 405,UNS S40500,X6Cr13,1.4000,DE12-0621.
- Shape:Turbine Blade Steel.

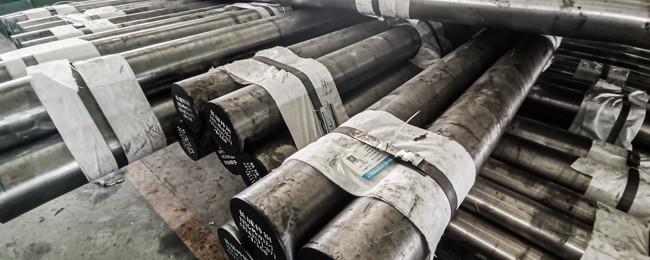

- Round bar / Wire rod (Diameter): 5.5mm to 800mm
- Square bar / Flat bar: 3mm to 800mm
- Forging piece: stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.
- Heavy/middle plate via hot rolled: T6 - 200mm X W10 - 1500mm X L1000-12000mm
- Sheet steel via cold rolled: T0.5 - 6mm X W6 - 1000mm X L1000 - 2000mm
- Steel strip via cold rolled: T0.1 - 3mm X W5 - 200mm X L (or in coil form)
- Length: Fixed length or random length or based on the customer's special requirement.
Products Details
ASTM 405 Turbine Blade Steel AISI 405 Round Bar UNS S40500 Flat Bar X6Cr13 1.4000 DE12-0621 Bar
| Chemical Composition (weight%): | Mechanical Properties Under Final Heat Treatment: |
| C (％): ≤ 0.08 Si (％): ≤ 1.00 Mn (％): ≤ 1.00 P (％)≤: 0.040 S (％)≤: 0.030 Cr (％): 11.0 - 14.50 Ni (％): ≤ 0.50 Mo (％): - Al (％): 0.10 - 0.30 |
Condition: annealing Tensile strength, σb/MPa: 415 Yield strength, σ0.2/MPa: 170 Elongation, δ(％): 20.0 Reduction of area, ф(％): - Hardness | HBW: 179 Hardness | HRB: 88 Cold bending property: N |
Applications:
Chemical equipment
Mechanical parts used in the condition of corrosion resistance
Bolt and nut
Pressure vessel
| Technical Standard | Equivalent Grade |
| ISO/TS 15510(2003) | X6Cr13 |
| JIS G4303(2005) | SUS 405 |
| KS D3706(2006) | STS 405 |
| IS 6527(2001) | X04Cr13 |
| DIN EN 10088-1(2005) |
X6Cr13/1.4000 |
| NF EN 10088-2(2005) | X6Cr13 |
| NF A35-573(1984) | Z6CA13 |
| BS 970-1(1996) | 403S17 |
| ASTM A959(2004) | 405/S40500 |
FAQ
Q: How do you control the quality?
A: We have professional inspectors to analyze the chemical composition of raw materials and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends, bending, set length, outer diameter and Wall thickness will be checked one by one. You can rest assured that all products you receive from us are reliable.
Q: Do you accept customization?
A: Yes. If you have special requirements for products or packaging, we can make them for you.
Q: Can you accept trial orders?
A: Our MOQ is usually 1 ton. However, if you want to place an order as the start of our cooperation, we can accept smaller quantities at the first time. Of course, after the start, we will have further and longer cooperation.
Q: How do I get samples?
A: Free samples are available for your inspection and testing, DHL/FedEx/UPS accounts can be used for sampling, and the courier fee is borne by you.
