DIN 21CrMoV5-11 Structural Steel Round Bar

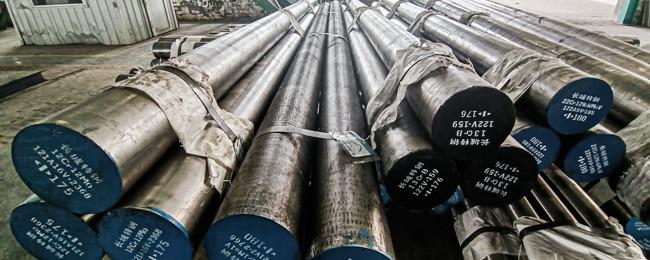

DIN 21CrMoV5-11 1.8070 Structural Steel Round Bar 21CrMoV5-11Round Bar 1.8070 Bar
Description
Our company provides DIN 21CrMoV5-11 1.8070 Structural Steel Round Bar 21CrMoV5-11Round Bar 1.8070 Bar.All of DIN 21CrMoV5-11 1.8070 Structural Steel Round Bar 21CrMoV5-11Round Bar 1.8070 Bar conform to Military standard, nuclear power. 100% Ultrasonic test.
- Material:Metal,DIN 21CrMoV5-11 1.8070 Structural Steel Round Bar 21CrMoV5-11Round Bar 1.8070 Bar
- Metal Type:structural steel series.
- Round bar / Wire rod (Diameter):5.5mm-800mm
Products Details
DIN 21CrMoV5-11 1.8070 Structural Steel Round Bar 21CrMoV5-11Round Bar 1.8070 Bar
| Chemical Composition (weight%): | Carbon, C (％): 0.17 ~ 0.25 |
| Silicon, Si (％): 0.30 ~ 0.60 | |
| Manganese, Mn (％): 0.40 ~ 0.80 | |
| Phosphorus, P (％)≤: 0.035 | |
| Sulfur, S (％)≤: 0.035 | |
| Chromium, Cr (%): 1.20 ~ 1.50 | |
| Molybdenum, Mo (%): 1.00 ~ 1.20 | |
| Vanadium, V (％): 0.25 ~ 0.35 | |
| Mechanical Properties Under Final Heat Treatment: |
Mechanical property ≥|σb/MPa: 690 ~ 830 |
| Mechanical property ≥|σs/MPa: 540 | |
| Mechanical property ≥|δ5(%): 16.0 | |
| Mechanical property ≥|Akv /J: 55.0 | |
| Hardness after annealed HBW: 205 ~ 250 |
DIN 21CrMoV5-11 1.8070 Structural Steel Round Bar 21CrMoV5-11Round Bar 1.8070 Bar may be furnished in one of the following conditions: stress relieving; annealing; solution treatment; solution treatment and ageing; normalizing; normalizing and tempering; or quenching and tempering.
Equivalent Grade:
DIN 21CrMoV5-11 DIN 17210(1986)
1.8070
FAQ
Q: How do you control the quality?
A: We have professional inspectors to analyze the chemical composition of DDIN 21CrMoV5-11 1.8070 Structural Steel Round Bar 21CrMoV5-11Round Bar 1.8070 Bar and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends, bending, set length, outer diameter and Wall thickness will be checked one by one. You can rest assured that all products you receive from us are reliable.
Q: Do you accept customization?
A: Yes. If you have special requirements for products or packaging, we can make them for you.
Q: Can you accept trial orders?
A: Our MOQ is usually 1 ton. However, if you want to place an order as the start of our cooperation, we can accept smaller quantities at the first time. Of course, after the start, we will have further and longer cooperation.
Q: How do I get samples?
A: Free samples are available for your inspection and testing, DHL/FedEx/UPS accounts can be used for sampling, and the courier fee is borne by you.
