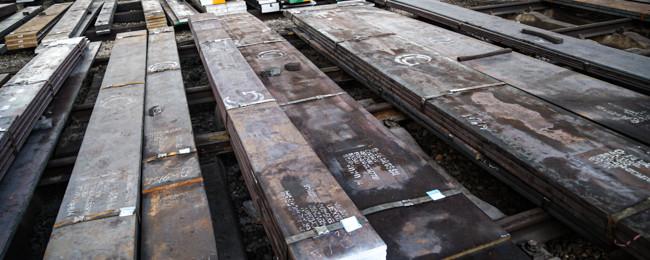

Black Or Bright Structural Steel Plates DIN 11CrMo9-10 1.7383
DIN 11CrMo9-10 1.7383 Structural Steel Plates 11CrMo9-10 Structural Steel 1.7383 Plates
Description
Our company provides DIN 11CrMo9-10 1.7383 Structural Steel Plates 11CrMo9-10 Structural Steel 1.7383 Plates.All of DIN 11CrMo9-10 1.7383 Structural Steel Plates 11CrMo9-10 Structural Steel 1.7383 Plates conform to Military standard, nuclear power. 100% Ultrasonic test ASTM E2375 /SAE AMS 2154 /SEP 1923 /GB/T 4162 /EN 10228-3.
Products Details
DIN 11CrMo9-10 1.7383 Structural Steel Plates 11CrMo9-10 Structural Steel 1.7383 Plates-High temperature alloy steel.
| Chemical Composition (weight%): | C (％): 0.08 ~ 0.15 |
| Si (％): ≤ 0.50 | |
| Mn (％): 0.40 ~ 0.80 | |
| P (％)≤: 0.030 | |
| S (％)≤: 0.025 | |
| Cr (%): 2.00 ~ 2.50 | |
| Ni (%): - | |
| Mo (%): 0.90 ~ 1.10 | |
| Cu ≤0.30, +Al | |
| Mechanical Properties Under Final Heat Treatment: |
Mechanical property ≥|σb/MPa: 520 ~ 670 |
| Mechanical property ≥|σs/MPa: 310 | |
| Mechanical property ≥|δ5(%): 18.0 | |
| Mechanical property ≥|Akv /J: 40.0 | |
| Hardness after annealed HBW: - | |
| Hot Working & Heat Treatment | Hot working temperature /℃: 1100~850 |
| Heat treatment temperature/℃|annealing /℃: 650～700 | |
| Heat treatment temperature/℃|quenching /℃: 920～980 Oil or air | |
| Heat treatment temperature/℃|tempering /℃: 670～750 |
Equivalent Grade
DIN 11CrMo9-10 DIN EN 10216-2(2004)
1.7383
DIN 10CrMo9-10 DIN 17175(1979)
1.7380
FAQ
Q: How do you control the quality?
A: We have professional inspectors to analyze the chemical composition of DIN 11CrMo9-10 1.7383 Structural Steel Plates 11CrMo9-10 Structural Steel 1.7383 Plates and test the finished products in strict accordance with the standards stipulated in the contract. In this process, the inner and outer surfaces, the appearance of both ends, bending, set length, outer diameter and Wall thickness will be checked one by one. You can rest assured that all products you receive from us are reliable.
Q: Do you accept customization?
A: Yes. If you have special requirements for products or packaging, we can make them for you.
Q: Can you accept trial orders?
A: Our MOQ is usually 1000 KG. However, if you want to place an order as the start of our cooperation, we can accept smaller quantities at the first time. Of course, after the start, we will have further and longer cooperation.
Q: How do I get samples?
A: Free samples are available for your inspection and testing, DHL/FedEx/UPS accounts can be used for sampling, and the courier fee is borne by you.
