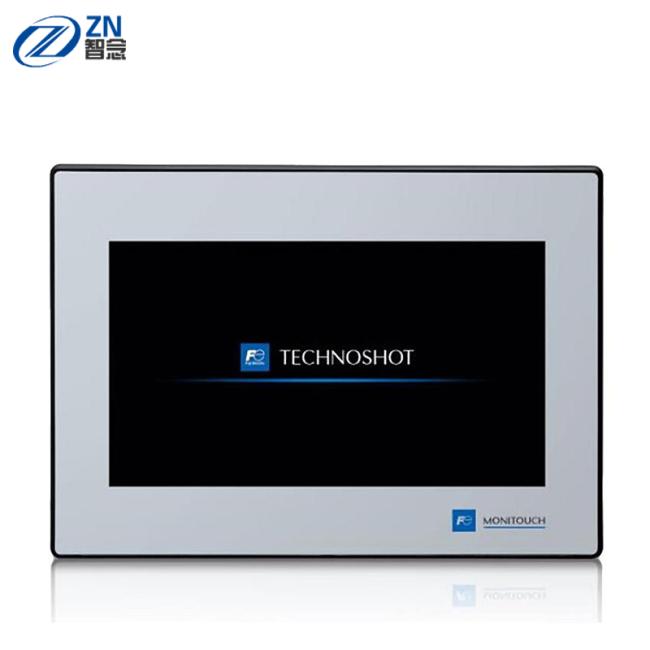

TS1070Si FUJI 7 Inches HMI New and Original

Price Negotiable

Price: Competitive

MOQ: 1/pc

Delivery Time: Negotiable

Brand: FUJI

Product Description

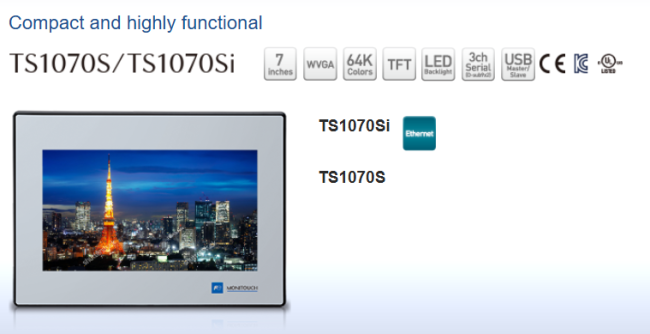

Model			TS1070S	TS1070Si
Main unit specifications	Screen size		7.0” widescreen
	Display device		TFT color
	Resolution		800 × 480 dots
	Colors		65,536 colors
	Backlight		LED
	Touch screen		Analog registive
	Certifications		CE / KC / UL / cUL
User Memory	FROM		26 MB
User Memory	SRAM		128 KB
External interface specifications	COM1 D-Sub 9 pin (female)		RS-422/RS-485(4-wire/2-wire) Data length: 7,8 bits Parity: even,odd,none Stop bit: 1,2 bits Baud rate: 4800,9600,19200,38400,57600,76800,115200,187500*1 bps
	COM2/COM3 D-Sub 9 pin (male)		COM2:RS-232C COM3: RS-422/RS-485(2-wire) Data length: 7,8 bits Parity: even,odd,none Stop bit: 1,2 bits Baud rate: 4800,9600,19200,38400,57600,76800,115200 bps
	LAN RJ-45		-	1 ch
	USB-A		1 ch
	USB mini-B		1 ch
Power supply	Permissible range of voltage		24 V DC ± 10 %
Power supply	Power consumption (max. rating)		11W or less
Physical environment	Ambient temperature		0 to 50°C*2
	Ambient humidity		85% RH or lower(non-condensing)*2
	Contamination level		2
	Operation altitude		2,000 m or less
	Atmosphere		Not to be exposed to corrosive gas, or conductive dust
	Storage ambient temperature		-10 to 60°C*2
	Storage ambient humidity		85% RH or lower(non-condensing)*2
Installation conditions	Protective structure	Panel front	IP65 equivalent (when using waterproof gasket3), IP40 equivalent (when not using waterproof gasket3)
	Protective structure	Rear case	IP20 equivalent
	Dimensions W × H × D		198.8 × 141.8 × 38.0 mm
	Panel cutout		189.0 × 134.0 (+0.5/-0)mm
Case color			Black
