Proface HMI 10 inch TFT color LCD touch panel with 1280 by 800 pixels resolution and 8 point five watt power consumption
Price:
$806/pc ~$1605/pc
MOQ:
1/pc
Delivery Time:
3-5 working days
Brand:
Pro-face
Product Description

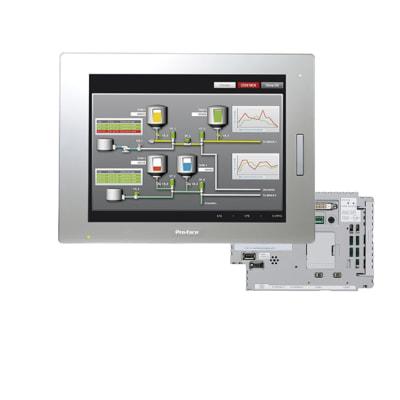

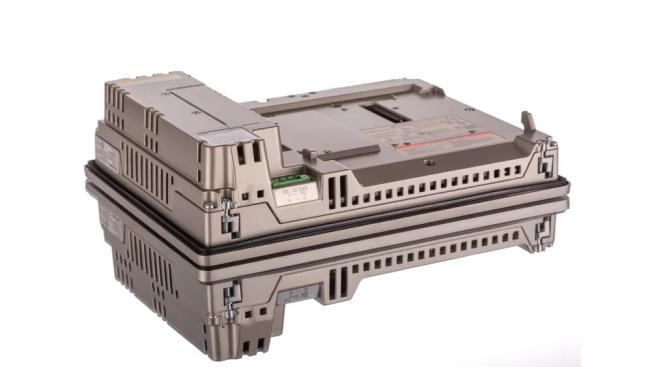

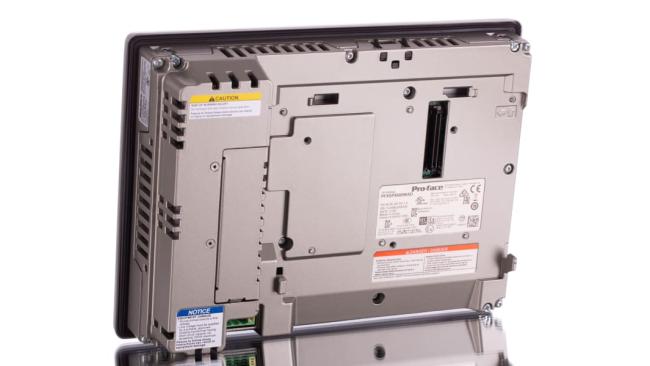

PFXSP5500WAD| Pro-face | 10W touch panel display
- Part Number: PFXSP5500WAD (SP-5500WA Advanced Display)
- Display Size & Type: 10.1-inch TFT Color LCD (16 million colors, though some documents specify 262,144 or 65k+ depending on box unit)
- Resolution: WXGA 1280 x 800 pixels
- Touch Panel: Analog resistive single-touch screen
- Brightness: 400cd (typ) with adjustable backlight
- Backlight Lifespan: 50,000 hours or more
- Input Voltage: 12-24 V DC (limits 10.8 to 28.8 Vdc)
- Power Consumption: Maximum 8.5W (display module only)
- Protection Rating: IP66F, IP67F, Type 4X (indoor use only)
- Dimensions: W268.5 x H198.5 x D67 mm
- Panel Cut-out: 255 x 185 mm
- Weight: 2.5 kg or less
- Operating Temp: 0 --- 60 °C
