Brand-New 6ES7511-1CK01-0AB0 SIMATIC S7-1500 Compact CPU Good Price and Quantity

Price Negotiable

Price: USD1065-1100/pcs

MOQ: 1

Delivery Time: 3days

Brand: SIEMENS

Product Description

6ES7511-1CK01-0AB0

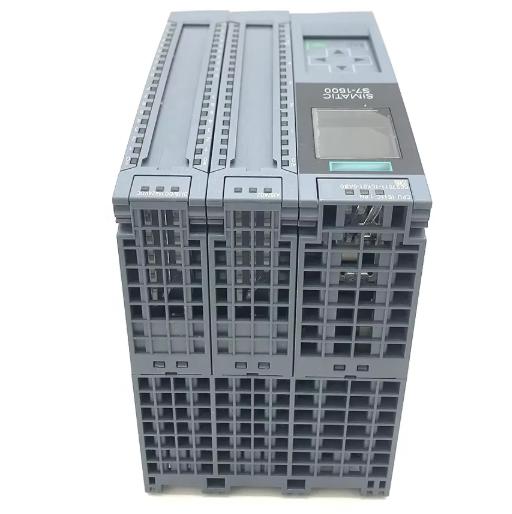

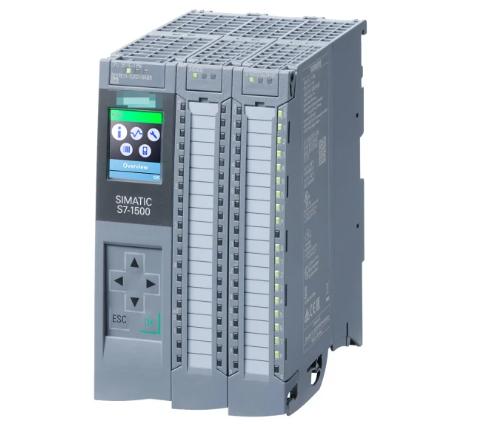

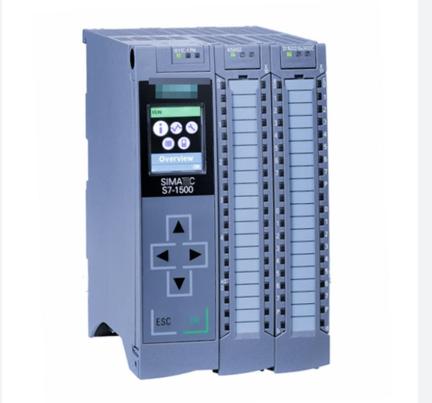

SIMATIC S7-1500 Compact CPU CPU 1511C-1PN, central processing unit with working memory 175 KB for program and 1 MB for data, 16 digital inputs, 16 digital outputs, 5 analog inputs, 2 analog outputs, 6 high speed counters, 4 high speed outputs for PTO/PWM/frequency output 1. interface: PROFINET IRT with 2 port switch, 60 NS bit-performance, incl. front connector push-in, SIMATIC memory card necessary

Key Technical Specifications

Memory Configuration: Integrated 175 KB work memory for programs and 1 MB work memory for data.
Integrated Digital I/O: Features 16 digital inputs (24 V DC) and 16 digital outputs (24 V DC / 0.5 A transistor).
Integrated Analog I/O: Features 5 analog inputs (4x current/voltage, 1x RTD/resistance) and 2 analog outputs (current/voltage).
Technological Functions: Includes 6 high-speed counters (HSC) and 4 outputs for pulse train (PTO), pulse-width modulation (PWM), or frequency output.
Interface: Built-in PROFINET IO IRT interface with a 2-port switch.
Processing Speed: Delivers high performance with a bit operation execution time of 60 ns.
Physical Properties: Features an 85 mm module width and requires a SIMATIC Memory Card and front connectors for operation.

Configuration Note

Software Requirements: Configured and programmed exclusively via STEP 7 (TIA Portal), supporting standard languages like LAD, FBD, STL, SCL, and GRAPH.
System Expansion: Supports a maximum configuration of up to 32 expansion modules on the backplane bus.
