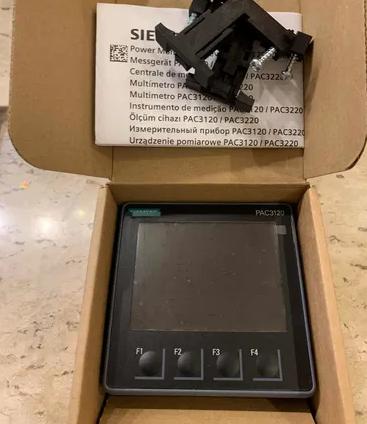

7KM3120-0BA01-1DA0 Brand-New in Box 1PC LCD 96 x 96 mm Power Monitoring Device Goods Good Price and Quantity
Price:
USD212-220/pcs
MOQ:
1
Delivery Time:
3days
Brand:
SIEMENS
Product Description
7KM3120-0BA01-1DA0
PMD SENTRON PAC3120 LCD AC DC
SENTRON PAC3120, LCD 96 x 96 mm Power Monitoring Device, control panel instrument with measurement of electrical variables, protocol: Modbus RTU, with graphical display, Ue rated: 690/400 V, 45-65 Hz, Ie rated: X/1 A or X/5 A AC, auxiliary power: 100 ... 250 V +-10% AC/DC, screw terminal connection
Core Technical Specifications
- Measurement Functions: Captures basic electrical variables including voltage, current, frequency, power (active, reactive, apparent), and energy consumption
- Voltage Inputs: Direct measurement up to 400V (Phase-to-Neutral) / 690V (Phase-to-Phase) AC, 45 to 65 Hz
- Current Inputs: Supports connection via external Current Transformers (CT) outputs
- Auxiliary Power Supply: Equipped with a wide-range power supply unit supporting 100 to 250 V AC/DC
- Hardware & Interface: Features a 96 x 96 mm backlit LCD graphical display, requiring a standard 92 x 92 mm panel cutout
- Enclosure Rating: Offers IP65 protection on the front side (dust-tight and water-jet proof) when properly installed
- Connectivity: Integrated Modbus RTU protocol over an RS485 serial interface. It includes 2 digital inputs and 2 digital outputs for status monitoring or pulse output
