Brand-New MSMD042G1U MINAS A5 Family Servo Motor Good Price
Price:
USD108-115/pcs
MOQ:
1
Delivery Time:
3days
Brand:
Panasonic
Product Description

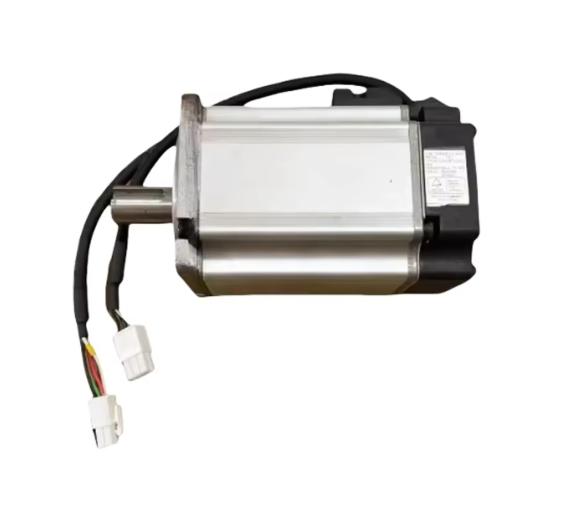

MSMD042G1U｜MINAS A5 Family Servo Motor
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MSMD042G1U |
| Product details | Low inertia, Lead wire type, IP65 |
| Family Name | MINAS A5 |
| Series | MSMD Series |
| Type | Low inertia |
| Protection class | IP65 |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 60 mm sq. |
| Flange size (mm) | 60 |
| Motor lead-out configuration | Lead wire |
| Motor encoder connector | Lead wire |
| Power supply capacity (kVA) | 0.9 |
| Voltage specifications (V) | 200 |
| Rated output (W) | 400 |
| Rated current [Reference value] (A rms) | 2.6 |
| Holding brake | without |
| Mass (kg) | 1.2 |
| Oil seal | with |
| Shaft | Key-way, center tap |
| Rated torque (N ⋅ m) | 1.3 |
| Momentary Max. peak torque (N ⋅ m) | 3.8 |
| Max. current [Reference value] (A 0-p) | 11.0 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 3000 |
| Max. rotational speed (r/min) | 5000 |
| Inertia of rotor ( x10-4 kg ⋅ m²) | 0.26 |
| Recommended inertia ratio | 30 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 20-bit Incremental system |
| Rotary encoder: Resolution | 1048576 |
