Ultrasonic Biometer for Ophthalmology for axial biometric parameter measurement ultrasound machine for eye
Ultrasonic Biometer for Ophthalmology for axial biometric parameter measurement ultrasound machine for eye

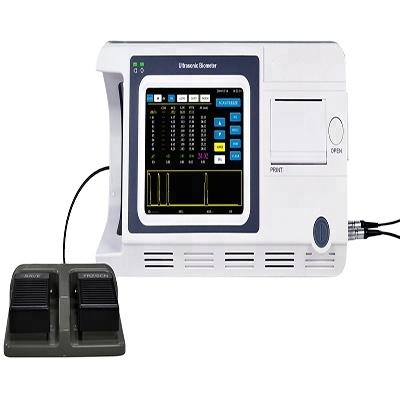

The Ultrasonic Biometer for Ophthalmology is an ultrasonic measuring instrument based on pulse reflection. It comprises two units: A Mode Eye Axis Biometric Parameter Measuring Unit (A Biometer) and Corneal Thickness Measuring Unit (Pachymeter). The A Biometer consists of a 10MHz A-Scan probe and an axis biometric parameter measuring unit. The Pachymeter consists of a 15-20MHz pachymetric probe and the measuring unit.
The has a built-in Thermal Printer, used to print out patient information, A-Scan measuring waveform, IOL calculating parameter and result, as well as corneal thickness measuring result and corneal thickness distribution map.
The built-in memory of the can store up to 180 patients' records.
Clinical Aplication
It is intended for axial biometric parameter measurement and corneal thickness measurement in clinical ophthalmology.
A Biometer:
|
Ultrasonic frequency |
10MHz |
|
Display resolution |
0.01mm |
|
Total gain of receiver |
≥100dB |
|
Adjustable gain scope |
0~50dB |
|
Measuring accuracy |
15 mm~40mm |
| Measuring scope (AL) | ≤±0.05mm |
| Measuring Parameter | ACD, LENS, VITR and AL |
| Measuring mode | automatic mode or manual mode can be selectable. Automatic mode for Normal, Cataract and Aphakic mode |
| Measuring method | contact and immersion, can be selectable |
Pachymeter:
|
Ultrasonic frequency |
15-20MHz |
|
Display resolution |
1μm |
|
Measuring scope |
0.23mm~1.2mm |
| Measuring accuracy | ≤±5μm |
