Portable Panoramic Full Scale Ultrasound Bio-microscope UBM Opthalmology
Price:
$3,600-3,800.00/Units
MOQ:
1pc
Delivery Time:
about 5 days
Brand:
SUCE
Product Description
Product Description

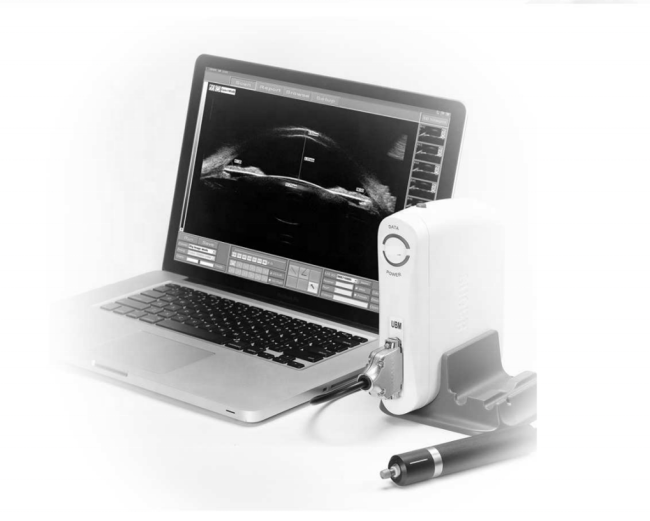

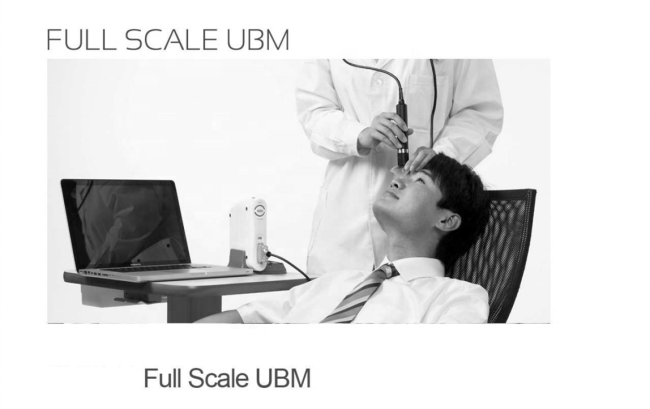

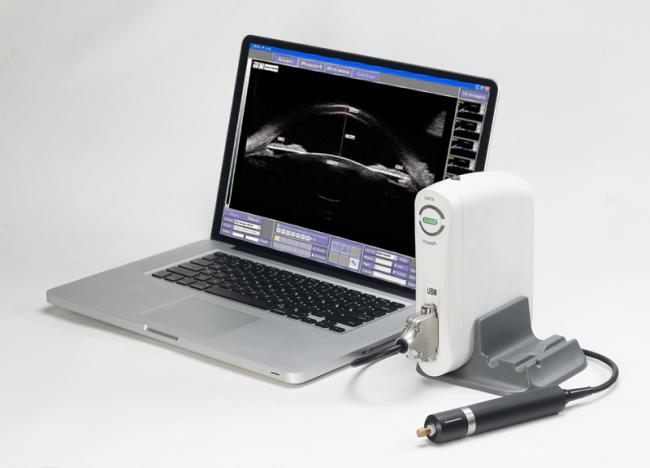

Portable Panoramic Full Scale Ultrasound Bio-microscope
UBM Opthalmology
New Design
Applications:
Full scale UBM is used for measuring the structure and the diagnosis of anterior segment, including comea, chamber angle, ciliary body, iris, anterior chamber, double-angle etc. Has been widely used in glaucoma, eye injury and ciliary body dicease.
Applications & Advantages
For both human and vet
Display mode: UBM,UBM+A
System performance: it have a special independent 50μm ultrasonic amplification system make the anterior segment image clearer.

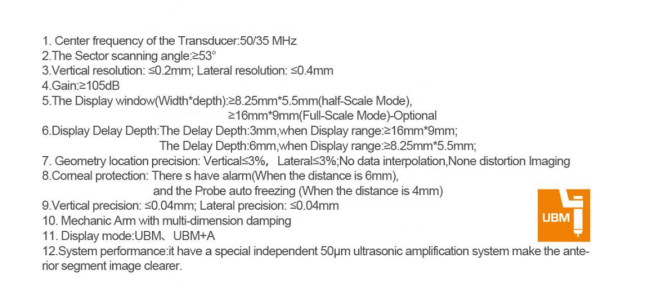

Detailed Parameters
|
Frequency
|
50/35 MHz
|
|
|
||
|
Scanning Mode
|
Wide Range Linear Scanning Mode,Undistorted,Sulcus-to-Sulcus
|
|
|
||
|
Scanning Range
|
16mm*9mm;10 mm *6.5mm
|
|
|
||
|
Display mode
|
UBM,UBM+A
|
|
|
||
|
Vertical precision
|
≤40μm
|
|
|
||
|
Lateral precision
|
≤40μm
|
|
|
||
|
Scanning Lines
|
1024 Lines, 15 μm between each lines
|
|
|
||
|
Geometry location precision
|
Vertical≤3%,Lateral≤3%;No data interpolation,None distortion Imaging
|
|
|
||
|
Display mode
|
UBM,UBM+A
|
|
|
||
|
System performance
|
it have a special independent 50μm ultrasonic amplification system make the anterior segment image clearer.
|
|
|
||
|
Certificate
|
CE ISO
|
|
|
||
