Led Neonatal Jaundice Phototherapy Pediatrics Instruments Neonatal Phototherapy Unit
Standard Configuration
The bed (including the radiant light system, timer and
light switch), bracket and mattress cover
Specification
Power requirement: AC220V-230V/50Hz, 75VA
Light resource: Blue LED
Lifetime of LED: 20000hrs
Lifetime of the Fluorescent lamp: 2000hrs
The total irradiance for bilirubin on the effective surface area:≥3.0mW/cm 2
Average value general bilirubin radiation of on the effective surface area:≥2.6mW/cm 2
Uniformity of the total irradiance for bilirubin: >0.4
Dominant wavelength of blue light: 400-550nm
Max. load of mattress: 10kg
Indication range of accumulative running time for lamp: 0~99999.9hrs
Indication range of current running time for lamp: 0~999.9 hrs
Timer Mode: count up and count down
Working noise: ≤50dB(A
Environmental Requirement
Operating range: 20 ℃~30℃
Ambient air movement rate: ≤0.3m/s
|
Brief Introduction
● Mattress cover configuration; ● LCD display indicates the accumulative running time and the current working time; ● Light switch in draw out type; ● Two kinds of timer mode: Count up and Count down. |

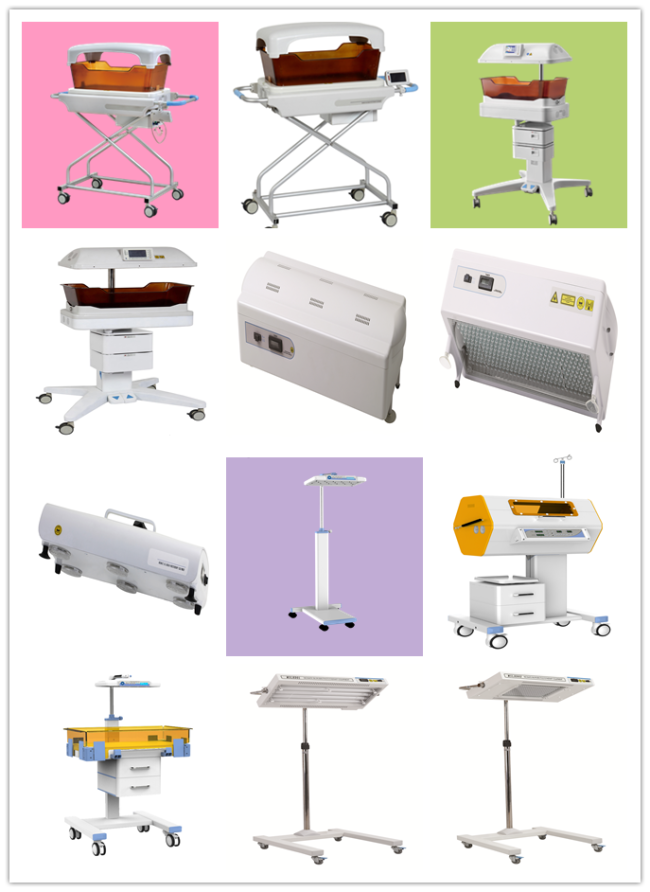

OTHER SERIES
