ctg machine maternal and fetal doppler monitor for TOCO,FHR,FM DM002
Price:
$1,799.00 - $1,999.00/Pieces
MOQ:
1pc
Delivery Time:
about 10 days
Brand:
SUCE
Product Description

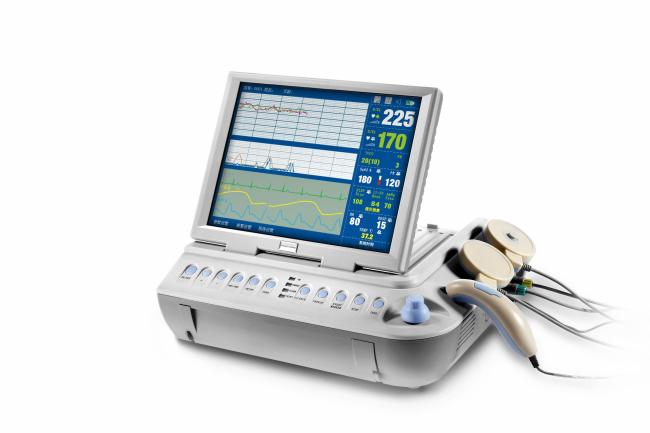

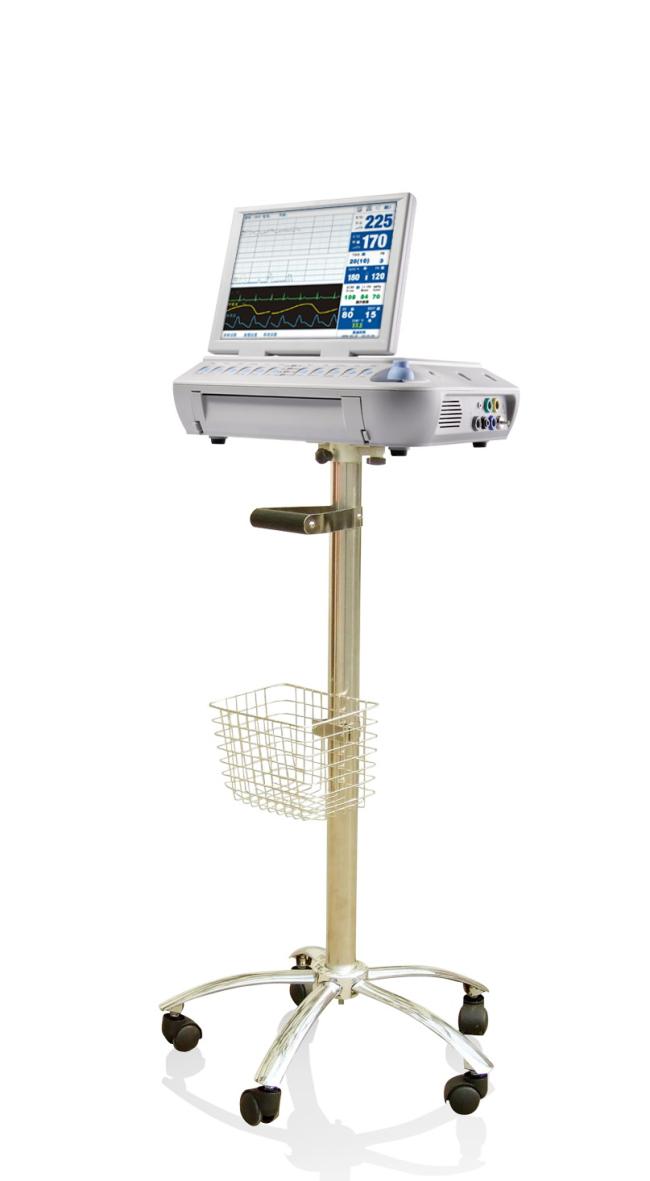

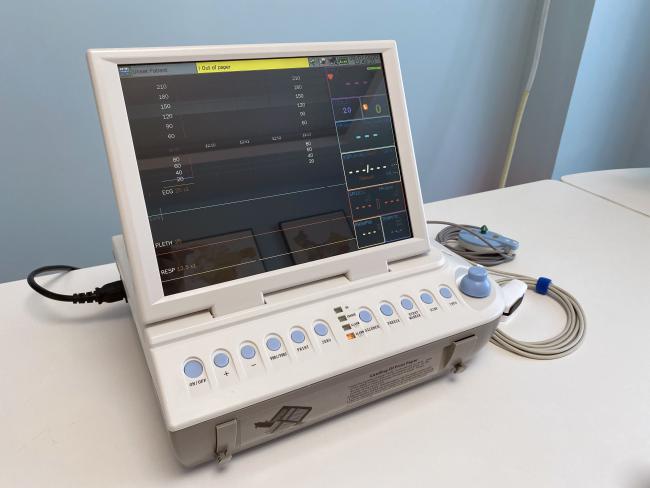

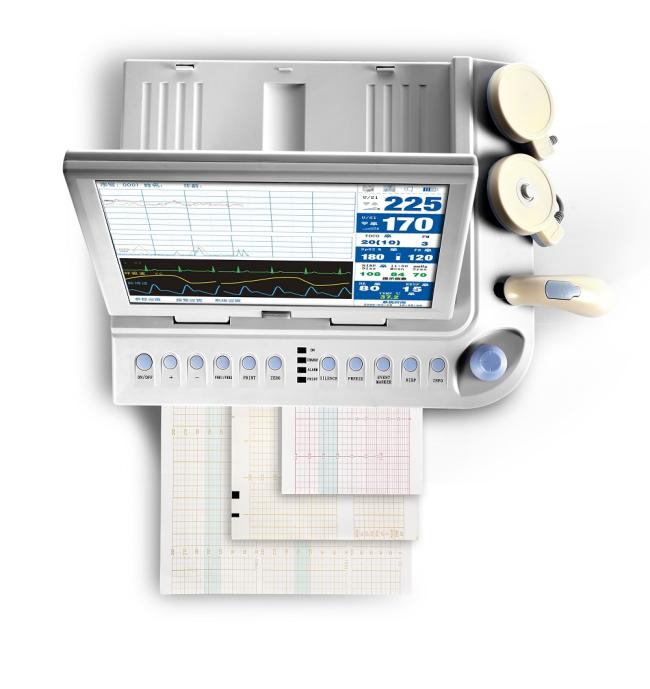

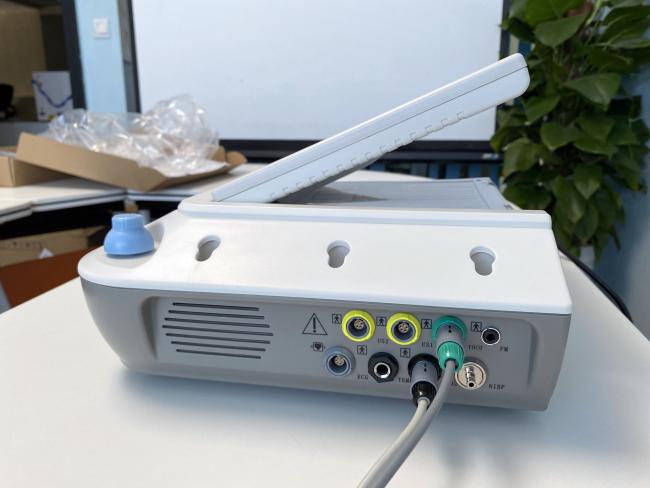

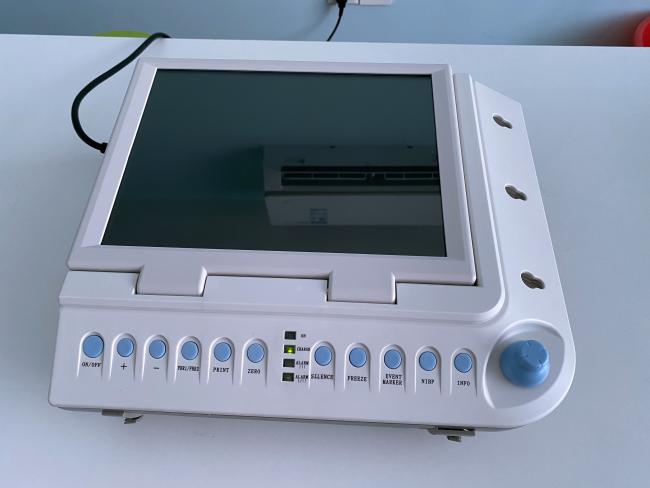

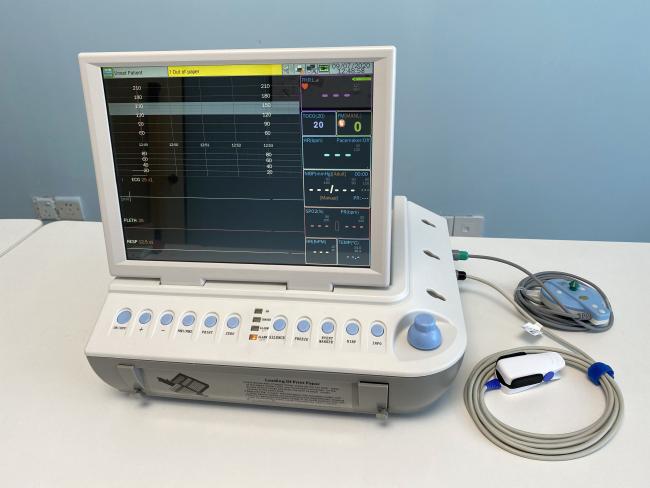

ctg machine maternal and fetal doppler monitor for TOCO,FHR,FM DM002
Product Description
Introduction

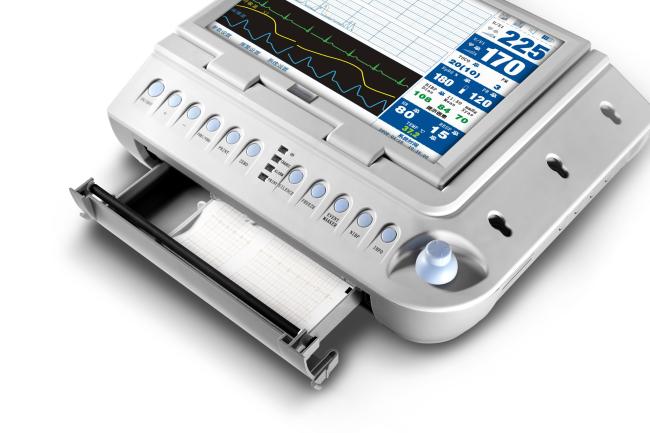

This series is a lightweight, compact fetal and maternal monitor, it can meet the need of whole stages of labor (including antepartum and intrapartum monitoring for fetus and mother),It also can be connected to the obstetrical central station.
Main features ●12.1”TFT color LCD screen , any angle rotation design ●Linux operation system, stable and easy operation ●48-hour data recall ●3 kinds of paper width available: 112/150/210MM ●5 different operation interfaces ●Automatic fetal movement detection ●High sensitive 12 element 1MHz F.T.M. transducer ●Dual power supply system of AC and built-in rechargeable lithium battery ●Net work function
|
Standerd parameters:
|
TOCO,FHR,FM
|
|
Option:
|
twin montiroing,FAS(Fetal acoustic simulator)
|
|
|
Transducer: Multi-crystals, wide wave beam, pulsed-wave working method, high sensitivity
|
|
|
Strength: < 5mW/cm2
|
|
RESP
|
Working Frequency: 1.0MHz
|
|
|
Signal Processing: Special DSP system and modern recognition
|
|
Alarm Range: High Limit: 160, 170, 180, 190 bpmSpO2
|
Measurement Range:50～240bpm
|
|
|
Alarm Range: High Limit: 160, 170, 180, 190 bpm Low Limit: 90, 100, 110, 120 bpm
|
|
NIBP
|
Maximum Audio Output Power: 1.5 Watt
|
|
TOCO
|
Measurement Range: 0-100 units
|
|
Display
|
Type: 12.1″, color TFT LCD - Resolution: 800×600 pixels
|
|
Gel
|
Viscous aqueous non-sensitizing, hypo-allergenic and non-irritating to skin. Bacteriostat (not sterile)
|
|
Size and Weight:
|
Type: 12.1″, color TFT LCD - Resolution: 800×600 pixels
|

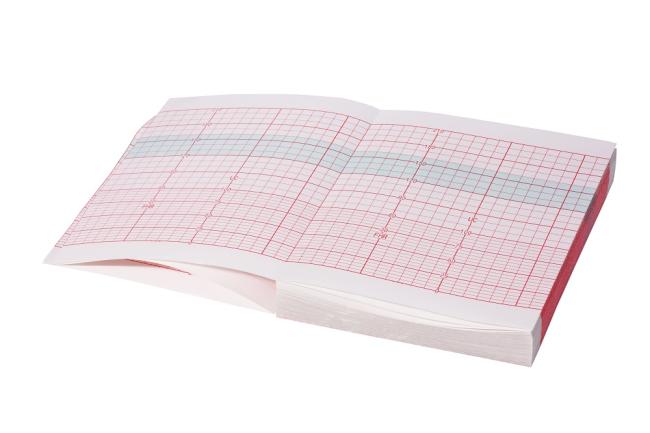

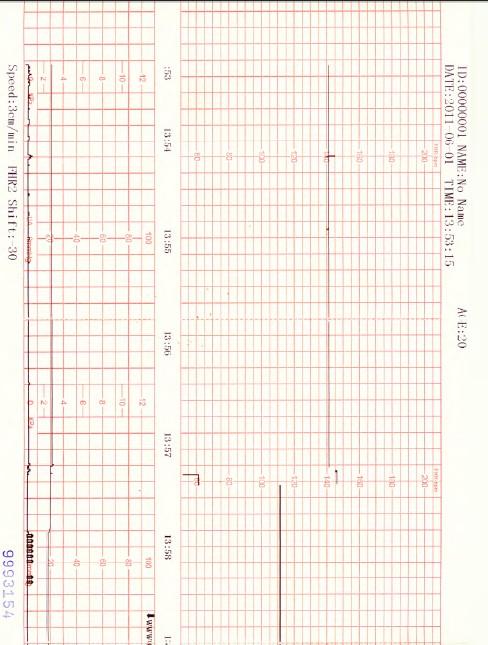

Recorder - Recording speed: Real-time recording : 1cm/min, 2cm/min, 3cm/min Review of fast recording: up to 13mm/s - Paper type: 152 mm Z-folded thermosensitive printing paper FHR - Measurement method: Ultrasound Pulsed Doppler - Ultrasonic intensity: < 5mW/cm2 - Ultrasonic frequency: 1.0MHz, deviation less than ±10％ - FHR Measurement Range: 50bpm ~ 210bpm - Resolution: 1bpm - Accuracy: ±2bpm - Output beam intensity(Iob): <20mW/cm2 TOCO - Measurement method: Strain Gauge Sensor Element - Measurement range: 0~100 units (relative to %) - Resolution: 1% (1 unit) - Nonlinear accuracy: ≤ ±10% - TOCO baseline: 0, 5, 10, 15, 20 ,optional
FM - Measurement method: Doppler ultrasound - FM intensity measurement range: 0-40 (%) relative range - Resolution: 1％ - Model: Auto/Manual NIBP - Measurement way: Automatic oscillometry - Measurement mode: Manual , Auto - Intervals for Auto measurement time: 3 min, 5 min, 10 min, 15 min, 30 min, 60 min, 90min, 2h, 4h - Measurement kinds(Adult): Sys, Dia, Map - Measurement range (mmHg): SpO2 - Measurement range: 0% to 100% - Alarm range: High/low limit: 85% to 100% - Resolution: 1% - Accuracy: 70% to 100%: ± 2% 35% to 69%: ±3% 0% to 34%: undefined
Details Images
