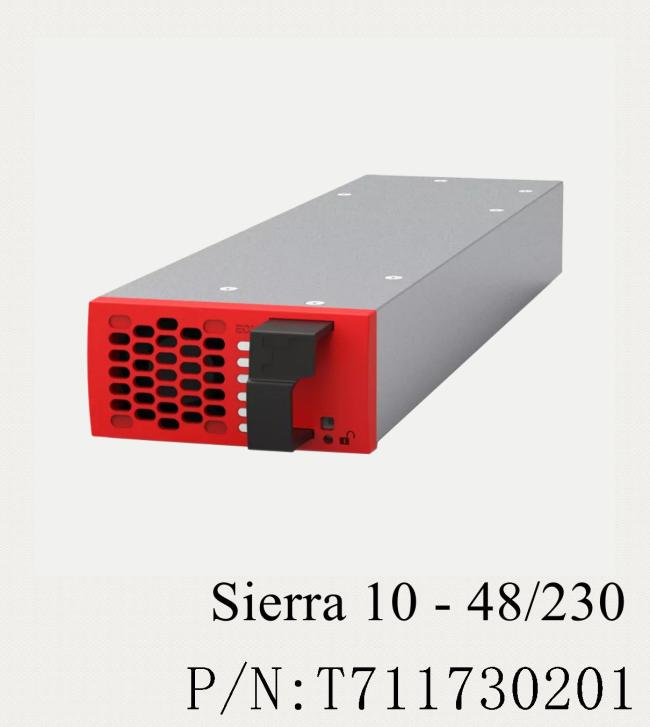

Sierra 10–48/230 48v To 230v Converter Multidirectional 1.25KVA 1.2KW Inverters P/N T711730201
CET Converters Sierra 10–48/230 Multidirectional Converters 1.25KVA 1.2KW Inverters(P/N.:T711730201)
Description:
Sierra 10 – 48/230 can be used as a UPS to secure AC & DC loads and charge the batteries.
The 3 all bidirectional ports allow for multiple innovative applications such as grid reinjection, peak shavings,
phase balancing or energy sharing through DC distribution, among many others.
By using several modules, we can offer solutions for three-phase (3x400Vac + N) infrastructures.
The module can be integrated into a shelf to provide up to 6 kW in just 1U high or 4.8 kW with integrated monitoring.
The total output power per module is 1.2 kW, limited to 1 kW for each AC or DC port.
Key Features:
- Secure AC & DC loads;
- Many innovative applications;
- All-in-one solution with monitoring;
- Modularity: from 1.2 to 38 kW;
- Incredibly compact.
Versions:
Parameters:
| In/Out: DC voltage (range) | 48 Vdc (40-60) |
| In/Out: AC voltage (range) | 230 Vac (150-265) |
| Output power | 1.25 kVA / 1.2 kW |
| Efficiency: DC/AC | 93% |
| Efficiency: AC/AC | 96% |
| Operating temperature | -20°C to 65°C |
| Dimension | 1U x 87 mm x 319 mm |
| Part number | T711730201 |
