LiFePO4 Lithium Battery 48V 100AH 200AH Household Powerwall Energy Storage Battery OEM ODM 15KW Lithium Battery Packs
CUSTOM 48V 100AH 200AH Energy Storage Lifepo4 Lithium Battery Pack
If you don't see any products that are matching your requirements please contact us. We may not have it listed on our website yet.
Chalong fly provides ODM&OEMs with assurances of quality for our products and our services. We distribute battery packs and battery cells from many reputable brand names. We manufacture a variety of custom battery packs and power supplies made to customer specifications.

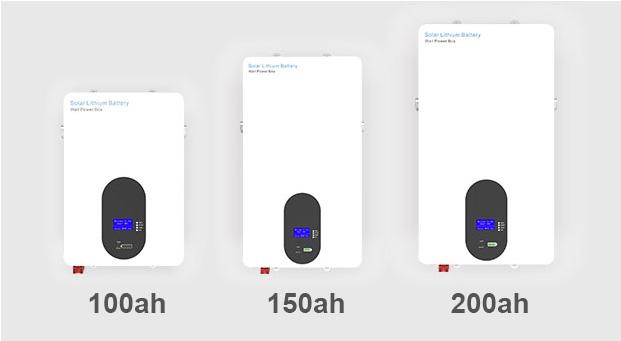

| Typical Capacity | 100AH | 150AH | 200AH |
| Energy storage | 4.8Kwh | 7.2Kwh | 9.6Kwh |
| Dimension(cm) | 59*41*15.5 | 67*44*15.5 | 86*48.5*15.5 |
| Weight | 47kg | 55kg | 86kg |
| Typical Voltage | 48V | ||
| Voltage Working Range | 42-54.8V | ||
| Working Temperature | Charge: 0-+55°C | ||
| Discharge Temperature | -20-+60°C | ||
| Storage Temperature | 0-+40°C | ||
| Max. Charge Current | 100A | ||
| Max. Discharge Current | 120A | ||
| Cycle Life | >6000 | ||
| SOC Accuracy | <8% | ||
| Certifications | CE, ROHS, UN38.3, MSDS | ||
-
Multiple communication interfaces: RS485, RS232, CAN.
-
According to ROHS requirements. Passed safety certification: CE, ROHS, UN38.3, MSDS, etc.
-
The cycle life reaches 6000 cycles.
-
It is seamlessly connected with our energy storage inverter and communicates with them.
-

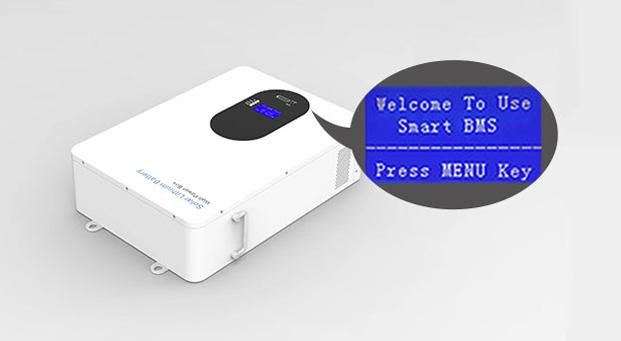

Configurable view the inverter operating parameters directly on the lithium battery display screen.
-

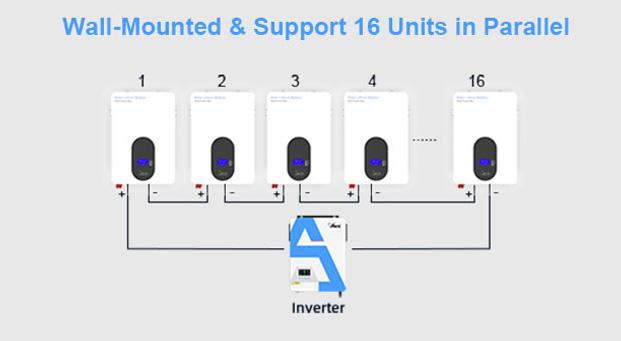

Support 16 batteries connected in parallel.
-
Support custom 51.2V, and other capacities.
-
The lithium battery is highly compatible with BMS and can be properly charged and discharged according to the usage of the solar system.
-
With overcharge protection and over-discharge protection, over current short circuit balancing and alarm function; With high reliability, ensure safe use.
Features:
1. High Energy: 5KWh energy storage, can meet 1 day's electricity usage of a Home.
2. Bank-up function: no need to worry of out of electricity when any emergency situation.
3. Solar system. can work with Solar panels to store Solar energy. save money and eco friendly
4. Save electricity fee. can adjust electricity usage when high price, and save more money.
5. Long service life: Lifepo4 battery Prismatic cell, can service 3000 times when left with 80% energy, that is means can service for 10~15 years when High frequency of use.
6. Safe. Lifepo4 battery has no possibility of explosion when any usage condition, it is very safe to place it in the house.
7. Save space. The wall-mounted design doesn't take up space.
To Pack Wall-Mounted Lithium Ion Battery well. Generally, as follow:
2) Packaging also can be made by customers requirements
