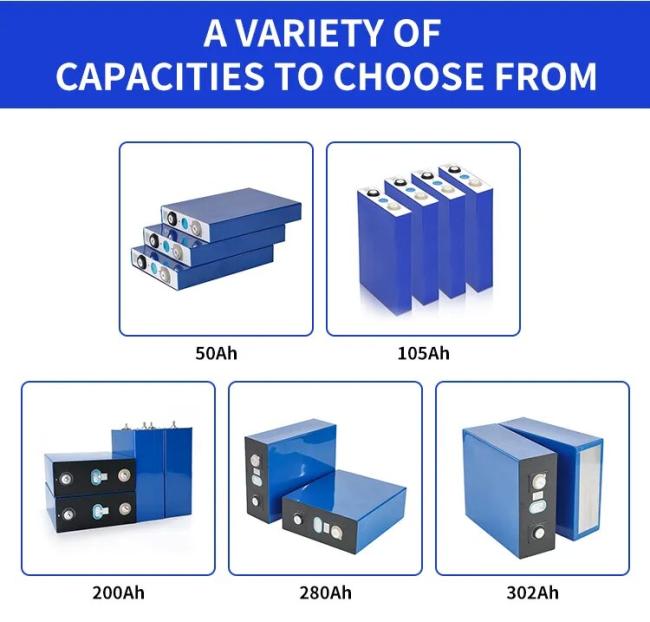

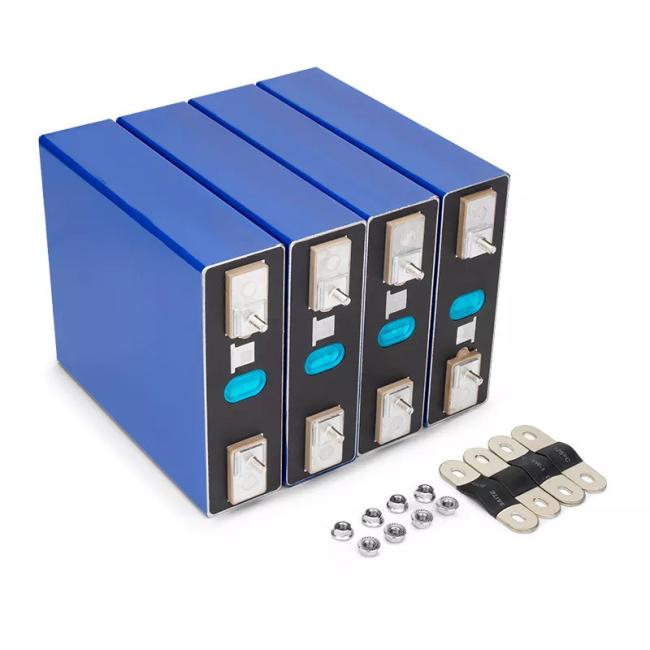

LiFePO4 Lithium Battery Solar Energy Storage Lithium Iron Phosphate Battery 3.2V 100AH 280AH 320AH
If you don't see any products that match your requirements please contact us. We may not have it listed on our website yet.
Chalong Fly provides ODM&OEMs with assurances of quality for our products and services. We distribute battery packs and battery cells from many reputable brand names. We manufacture a variety of custom battery packs and power supplies made to customer specifications.
|
Items
|
Specifications
|
|
Nominal Voltage
|
3.2V
|
|
Nominal Capacity
|
280Ah
|
|
Standard Charge Current
|
0.2C-0.5C
|
|
Max. Charge Current
|
1C
|
|
Continuous Discharge Current
|
1C
|
|
Peak Discharge Current
|
2C
|
|
Charge Cut-off Voltage
|
3.9V
|
|
Discharge Cut-off Voltage
|
2V
|
|
Inner Resistance
|
≤ 0.3mΩ (At 0.2C rate, 2.0V cut-off)
|
|
Weight
|
5.5kg
|
|
Dimension
|
Length: 205mm
Width: 175mm Thickness: 72mm |
|
Operating Temperature
|
Charging: 0°C ~ 45°C
Discharging: -20°C ~ 55°C |
|
Storage Temperature
|
optimal store temperature of 23 ± 5°C for long term storage
|
|
Life Cycle
|
≥3500 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard)
|

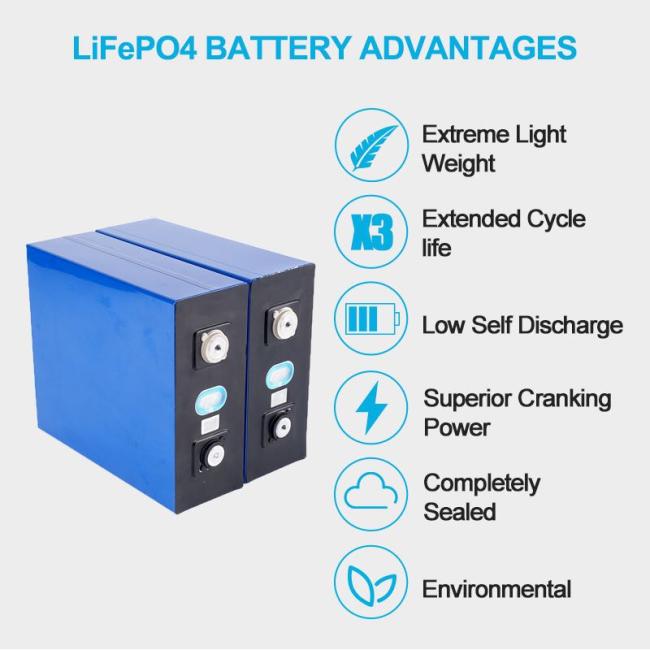

Features:
1. High Capacity and Stable Discharge Voltage.
2. Light weight, small size, and high performance.
3. Small internal resistance.
4. Outstanding Discharge properties and Storage Capacity.
5. Pollution-free, long cycle life.
6.No memory effect.
7. Existing stock for short delivery time.
8. OEM orders are available.
