48v 200ah Lifepo4 Lithium Iron Solar Batteries Pack 10kwh For Home

Price Negotiable
Price: Negotiable
MOQ: 1 unit
Delivery Time: 7-15 working days
Brand: CLTF
Product Description

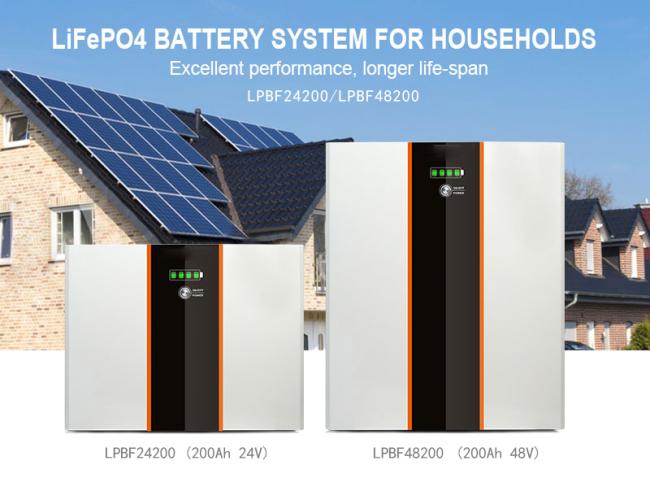

Longer Lifespan 10kwh 48v 200ah Lifepo4 Battery Pack Solar Lithium Ion Battery With BMS For Home Solar System

Features:
• > 6000 times deep cycle charge and discharge .
• Iron phosphate-lithium power battery .
• Higher energy density, smaller prismatic cells for household.
• Support connected in parallel mode for expansion.(Up to 16)
• Photovoltaic system: This battery pack is designed for household photovoltaic systems.
• Battery management system (BMS): The battery packs built-in BMS monitors its operation and prevents the battery from operating outside design limitations.

Model
LPBF24200
LPBF48200
Usable Capacity
5KWH
10KWH
Voltage
24V
48V
Rated Voltage
25.6V
51.2V
Charge Voltage
28.8V
57.6V
Discharge Voltage Range
24-28.8V
48-57.6V
MAX. Charge & Discharge Current
120A
Rated Charge & Discharge Current
80A
MAX. Output Power
2500W
Rated Output Power
2000W
DOD
95%
Modules Connection
1-6 in parallel
Communication

CAN&RS485
Ingress Protection
Cycle Life
>6000 times, @25℃
Working Temperature Range
Discharge:-20°C to +60°C, Charge:+0°C to +55°C
Net Weight(kg)
49kg
89.2kg
Product Dimension(MM)
552*409*240mm
552*649*240mm
Package Dimension(MM)
685*590*365MM
685*830*365MM
