976nm 60w Fiber Coupled Laser Diode Modules For Pump
Price:
Negotiable
MOQ:
1 Piece/Pieces
Delivery Time:
4-8weeks
Brand:
BWT
Product Description
|
Specifications(25℃)
|
Symbol
|
Unit
|
K976AA5RN-60.0W | |||
| Minimum | Typical | Maximum | ||||
| Optical Data | CW-Output Power | Po | W | 60 | - | - |
| Center Wavelength | λc | nm | 976±0.5 | |||
| Spectral Width (FWHM) | △λ | nm | ＜0.7 | |||
| Wavelength Locked range | - | A | (Iop-2) ~ Iop | |||
| Wavelength Shift with Temperature | △λ/△T | nm/℃ | - | 0.02 | - | |
| Wavelength Shift with Current | △λ/△A | A/℃ | - | 0.03 | - | |
| Electrical Data | Electrical-to-Optical Efficiency | PE | % | 48 | - | |
| Threshold current | lth | A | - | 0.9 | - | |
| Operating current | lop | A | - | 12 | 13 | |
| Operating voltage | Vop | V | - | 12 | 12.5 | |
| Slope Efficiency | η | W/A | - | 5.5 | - | |
|
Fiber Data
|
Core diameter | Dcore | μm | - | 106.5 | - |
| Cladding diameter | Dclad | μm | - | 125 | - | |
| Buffer diameter | Dbuf | μm | - | 250 | - | |
| Numeric aperture | NA | NA | - | 0.22 | - | |
| Fiber length | Lf | m | - | 1 | - | |
| Fiber Loose Tubing Diameter | - | μm | 0.9mm PVC 90cm | |||
| Minimum Bending Radius | - | mm | 60 | - | - | |
| Fiber termination | - | - | - | None | - | |
| Feedback Isolation | Back reflection wavelength | λ | nm | 1040-1200 | ||
| Back reflection isolation | - | dB | - | 30 | - | |
| Others | ESD | Vesd | V | - | - | 500 |
| Storage temperature | Tst | ℃ | -20 | - | 70 | |
| Lead Soldering Temp | Tls | ℃ | - | - | 260 | |
| Lead Soldering Time | t | sec | - | - | 10 | |
| Operating case temperature | Top | ℃ | 25 | - | 30 | |
| Relative Humidity | RH | % | 15 | - | 75 |
|

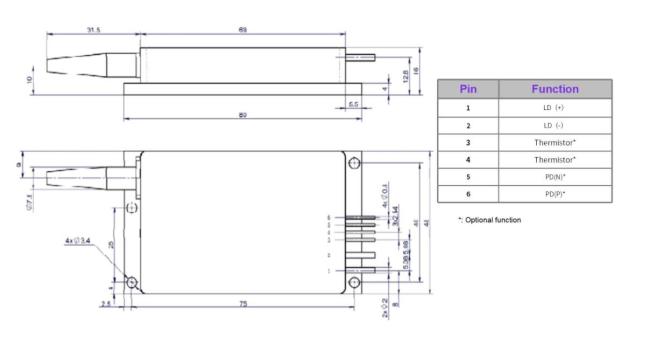

Structure Size (mm)
Features:
976nm wavelength
60W output power
106.5µm fiber core diameter
0.22N.A.
Narrow bandwidth △λ≦0.7nm
1040nm-1200nm feedback protection
Applications:
Fiber laser pumping
Instructions for use
- Avoid eye and skin exposure to direct radiation during operation.
- ESD precautions must be taken during storage, transportation and operation.
- Short-circuit is required between pins during storage and transportation.
- Use constant current power supply to avoid surge current during operation.
- Laser diode must be used according to the specifications.
- Laser diode must work with good cooling.
- Operation temperature ranges from 20℃ to 30℃ .
- Storage temperature ranges from -20℃ to +70℃.
- ESD precautions must be taken during storage, transportation and operation.
- Short-circuit is required between pins during storage and transportation.
- Please connect pins to wires by solder instead of using socket when operation current is higher than 6A.
- Soldering point should be close to the middle of the pins. Soldering temperature should be lower than 260℃ and time shorter than 10 second.
- Make sure the fiber output end is properly cleaned before operation of laser. Follow safety protocols to avoid injury when handling and cutting the fiber.- Use constant current power supply to avoid surge current during operation.
- Laser diode must be used according to the specifications.
- Laser diode must work with good cooling.
- Operation temperature ranges from 20℃ to 30℃ .
- Storage temperature ranges from -20℃ to +70℃.
