Customized Fiber Coupled Blue Diode Laser System 445nm 200W
Price:
Negotiable
MOQ:
1 Piece/Pieces
Delivery Time:
4-8weeks
Brand:
BWT
Product Description
445nm 30W 3D Printing Fiber Coupled Diode Laser
Diode laser subsystem provides wavelength range 450nm-1550nm optional, power range 2mW-300W can be customized.
The power, current, temperature, pulse width, frequency, etc. can be displayed through the LCD panel, and the panel can be adjusted or remotely controlled through the RS232 serial port. The system is highly integrated and easy to operate. It is mainly used in scientific research, system integration and other fields. At the same time, it can also meet other customized needs.
The power, current, temperature, pulse width, frequency, etc. can be displayed through the LCD panel, and the panel can be adjusted or remotely controlled through the RS232 serial port. The system is highly integrated and easy to operate. It is mainly used in scientific research, system integration and other fields. At the same time, it can also meet other customized needs.
Features:
- 445nm wavelength
- 100W/150W/200W output power
- 105µm fiber core diameter
- 0.22NA
Applications:
- Material processing
- 3D printing
- Material processing
| Specifications(25℃) | Unit | DS3-L100 | DS3-L150 | DS3-L200 | |
| Optical Data | CW-Output Power | mW | 100 | 150 | 200 |
| Center Wavelength | nm | 445 | |||
| Spectral width(FWHM) | nm | 6 | |||
| Wavelength shift with temperature | nm | ≤6 | |||
| Output power instability(20℃) | % | ±3(5 hours) | |||
| Power Range | % | 10-100 | |||
| Power supply | V | 100~240(50-60Hz) | |||
| Electrical Data | Power consumption at nom. Power, approx | KW | <1.2 | ||
| Drive mode | Constant current | ||||
| Emission mode | A | CW or Modulated | |||
| Control mode | A | RS232, I/O | |||
| Modulation frequency | Hz | 1~20K | |||
| Duty Ratio | W/A | 5~95 | |||
| Modulation Rise/Fall Time (Min. Value) | ≤10 | ||||
| Fiber Data | Core diameter | µm | 105 | ||
| Numerical Aperture | - | 0.22 | |||
| Fiber length | m | 5/ Customized | |||
| Fiber termination | HP-SMA905 / Customized | ||||

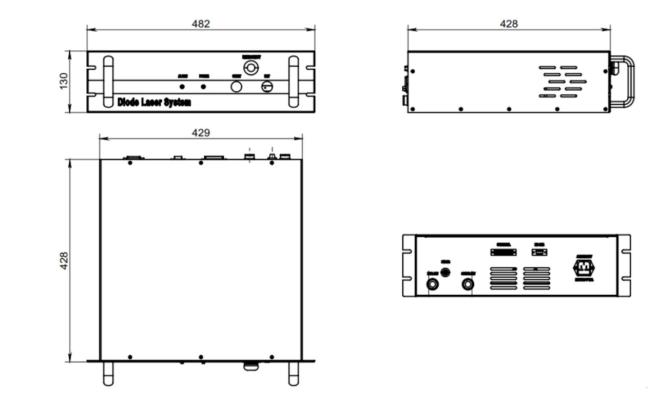

| Dimensions (L×W×H/mm) | mm | 430*482*130 | |||
| Weight | Kg | <15kg | |||
| Others | Refrigerating method | 0 | Water-cooling | ||
| Storage Temperature | ℃ | 5~50 | |||
| Temperature Ambient in Operation( | ℃ | 15~30 | |||
| Cooling requirement | sec | Quick coupling: Φ 10mm water pipe outside diameter Φ 6.5mm water pipe inner diameter Circulating water flow: ≥5L / min Cooling capacity: ≥ 4 × optical power | |||
| Relative Humidity | % | 5~80 | |||
| Safety class | % | 4(EN 60825-01) | |||
Instructions for use
- Avoid eye and skin exposure to direct radiation during operation.
- Make sure the fiber output end is properly cleaned before operation of laser. Follow safety protocols to avoid injury when handling and cutting the fiber.
- Laser diode must be used according to the specifications.
- Temperature Ambient in Operation ranges from 15℃ to 30℃.
- Storage temperature ranges from 5℃ to 50℃.
- Make sure the fiber output end is properly cleaned before operation of laser. Follow safety protocols to avoid injury when handling and cutting the fiber.
- Laser diode must be used according to the specifications.
- Temperature Ambient in Operation ranges from 15℃ to 30℃.
- Storage temperature ranges from 5℃ to 50℃.
