Industrial Cladding 1000W Blue Diode Laser 450nm High Absorption Rate
1000w Diode Laser System
Compared with traditional lasers, 1000W Blue diode laser has a higher absorption rate for materials such as copper and aluminum, and can realize processing of non-ferrous metals with lower power. This series of products are compact in structure and very convenient to use. Because of its flexible laser output mode, it can be easily integrated with system equipment.
It can be applied to metal welding, industrial cladding, quenching, material processing, laser research, etc. BWT has engineers proficient in laser applications and systems, who can provide you with professional application solutions.
Main features:
Maximum modulation frequency up to 5kHz
High electro-optical conversion efficiency
Good beam quality, suitable for precision processing
There are two modes of continuous and modulated pulse to optimize processing quality
Simple control interface
Low cost and maintenance-free
| Optical specification | ||||
| Output Power | 1000W | |||
| Wavelength | 450±10nm | |||
| Fiber Core | 400μm/600μm | |||
| Fiber length | 10 m or customized | |||
| Fiber Terminal | QBH | |||
| Aiming beam | Red | |||
| Operation Mode | Continous or Modulated | |||
| Polarization State | Random | |||
| Output Power Instability(25℃) | ＜3%(2hrs) | |||
| Output Power Tunability | 10%-100% | |||
| Modulation Frequency | 5kHz | |||
| Electrical Characteristics | ||||
| Voltage | three phase,380±20V,AC,PE,50 or 60Hz | |||
| Power Consumption | 5.0 kW | |||
| Interface | RS232 | |||
| Water Cooling Parameters | ||||
| Minimum Water Cooling Capacity | 4.0kW | |||
| Temperature Settings | 25℃(Laser Module),30℃(QBH) | |||
| Cooling Tubes Size(Extermal) | φ19 mm | |||
| Cooling Water Flux | >25L/min | |||
| QBH Cooling Water Flux | 2.0L/min | |||
| Others | ||||
| Weight | <80 kg | |||
| Outline Feature |
420mm* 590mm*900mm |
|||

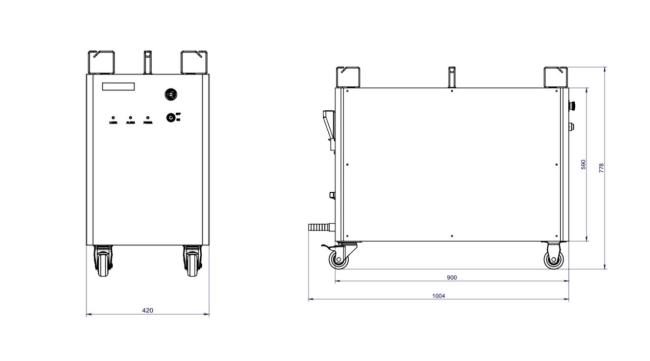

Structure Size (mm)
