PCB Processing 15W Picosecond UV Laser 355nm Wavelength

Topaz series 15W picosecond UV laser adopts a more stable design scheme with excellent optical index and consistency. Compared with the previous generation, it has better power stability. Even if it is used in harsh environments, the power can be restored by simply replacing the window, making industrial processing more convenient.

Applications:

 Laser cutting and drilling of brittle materials such as OLED, semiconductor materials, printed circuit board, biodegradable stent etc.

 Flexible Printed Circuit (FPC) dicing and drilling

 Printed Circuit board and wafer precision marking

 PI, PET, PMMA, PET etc cutting

 QR code engraving on glass and sapphire

 Li-ion battery electrodes cutting

 Other precision processing

Features:

Power:＞15W@800kHz

Max Energy:＞18.8μJ@800kHz

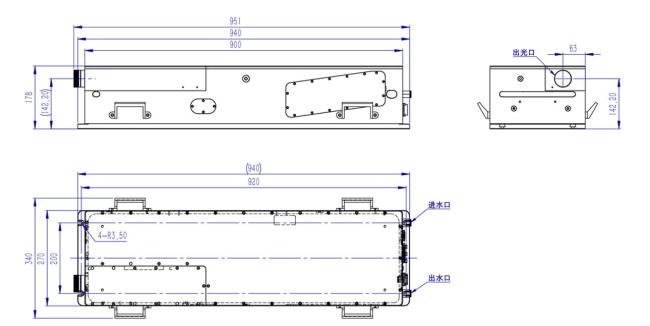

Narrow laser head width (27cm

Stable mechanical design; laser head design based on Golden ratio; compact size.

More stable power and beam quality by unique design

Excellent beam quality; consistent beam parameters along both x and y axis

Applicable even in some harsh circumstances; Reliability for 7*24 operation

​

Instructions

 Connect 110V-260V AC power supply for laser operation.

 Place the laser in a clean environment with space for sufficient heat dissipation.

 Set the environment temperature close to 25℃ which is the set temperature of chiller (Generally, 25℃ is a typical set temperature of chiller. This value may vary for different lasers. Refer to the printed report attached with the laser for the real value. ) Set the environment humidity within 10%~80%. Operation of laser in high/low temperature or high humidity environment is prohibited.

 Make sure the power supply of the laser is grounded. Operation of the laser in environment with strong electromagnetic interference is not recommended.

 Always wearing laser goggle when the laser is operating. Staring into the laser output window is strictly prohibited.

 Regularly examine of the cleanness of the distilled water and filter. Replace the filter every month. Make sure the water volume, water quality, flow rate is normal. The laser may be damaged permanently if the water is insufficient in chiller or the water flow is blocked.

 Always use packing box provided by Tianjin BWT Laser Ltd. for moving or storage of the laser. Always move the laser slowly and steadily and avoid sudden shock. Special fixture may be necessary for moving the laser.

 Operation Temperature 15℃~35℃.

 Storage Temperature－10℃~＋50℃.
