1030nm 20W20μJ IR Femtosecond Laser Real Time State Monitoring
Features:

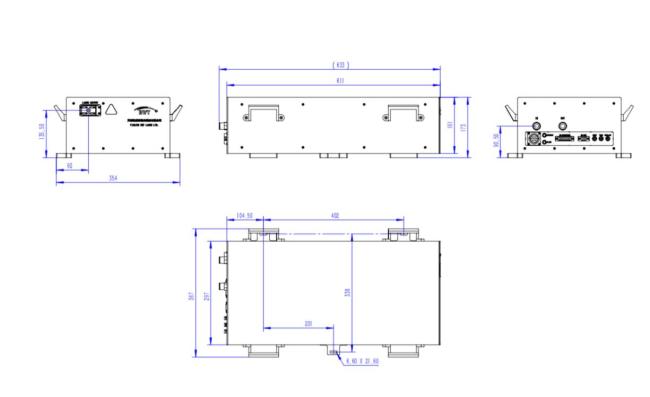

Dimension:L633 x W354 x H173(mm)
Power:>20W@1MHz
Max Energy:>20μJ@1MHz
Pulse width:<400fs
Beam Quality:TEM00(M²<1.4)
Beam Roundness:>90%
Low-cost; maintenance-free
Narrow pulse femtosecond; Excellent pulse quality and excellent stability
High beam quality; Suitable for precision processing
Real-time state monitoring
User-friendly interfac
Applications:
OLED dicing and drilling
Glass, ceramic, sapphire dicing and drilling
Dicing of semiconductor materials
Fuel injector nozzles drilling dicing of films
Micro-nano processing
Dicing of films
Precision marking
Other precision processing
| Parameters | Unit | BFL-1030-20L | |
| Specifications | |||
| Optical Data | Power | W | 20 |
| Wavelength | nm | 1030 | |
| Pulse Repetition Rate | khz | 1-1000K | |
| Pulse Width | ps | <400 | |
| Average Power | w | 20 | |
| Maximum Pulse Energy | mJ | 20 | |
| Average Power Stability | - | 2.0% rms | |
| Pulse-to-Pulse Instability | - | 3.0% rms | |
| Spatial Mode | - | TEM00 (M2 <1.40) | |
| Beam Roundnes | - | 90% | |
| Beam Divergence | mrad | 2.0mrad (Full Angle) | |
| Polarization Direction | vertical | ||
| Polarization Ratio | 100:1 | ||
| Electrical | Operating voltage | V | 220 |
| Parameter | |||
| Other parameters | Warm-up Time | mins | 20 |
| Ambient Temperature | ℃ | 15-30 | |
| Storage Temperature | ℃ | -10-50 | |
| Cooling Approach | sec | Water-cooling | |
| Relative Humidity | - | 10%-80% | |
Founded in 2017, Tianjin BWT Laser Ltd. is a subsidiary of BWT. Tianjin BWT Laser Ltd. is now a "high-tech" company focusing on developing and manufacturing femtosecond, picosecond and nanosecond lasers. The company is lead by national and Beijing specially recruited experts. More than 45% of the team members hold master's degree and three of them hold doctor degree. Moreover, the company has a joint research lab with Tianjin University, which includes intense cooperation in talents and technology transferring. Internally, the company is pursuing outstanding and high-efficient operation. Externally, the company is following the guideline of client first and wish to grow together with clients in business. Thus, Tianjin BWT Laser Ltd is committed to providing high-level and reliable lasers.
Tianjin BWT Laser Ltd. has 2000 square meters of R&D, production and office space, including one application laboratory and 700 square meters of clean room. For customers support, the company has set up a number of offices in east and south China. So far, Tianjin BWT Laser Ltd. has several products lines, including 10 to 100 watts of picosecond IR laser (energy up to 2mJ), femtosecond IR laser with 50W 50uJ output, 10 W femtosecond laser with narrow pulsewidth, and 30W picosecond UV laser etc. These lasers have been widely used in various fields such as industrial micro-processing, precision marking, medical treatment, scientific research and many other
