High Power Diode Laser System 1000W Precision Materials Processing
Price:
Negotiable
MOQ:
1 Piece/Pieces
Delivery Time:
4 Weeks
Brand:
BWT
Product Description
BWT Laser 1000W DDL (Direct Diode Laser) is designed for precision materials processing. With two optional modes, continuous mode and pulse mode, HAZ (heat affected zone) can be minimized. The system is designed for outstanding reliability and can be operated in harsh industrial application environment.
BWT Laser 1000W DDL are suitable for many applications, such as welding, cladding,libattery soldering, etc.
| Optical specification | ||||
| Output Power | 1000W | |||
| Wavelength | 915/976nm | |||
| Fiber Core | 330μm | |||
| Fiber length | 10 m or customized | |||
| Fiber Terminal | QBH | |||
| Aiming beam | Red | |||
| Operation Mode | Continuous or Modulated | |||
| Polarization State | Random | |||
| Output Power Instability(25℃) | ＜3%(2hrs) | |||
| Output Power Tunability | 10%-100% | |||
| Modulation Frequency | 5kHz | |||
| Electrical Characteristics | ||||
| Voltage | Single phase,220±20V,AC,50 or 60Hz | |||
| Power Consumption | 2.4 kW | |||
| Interface | RS232 | |||
| Water Cooling Parameters | ||||
| Minimum Water Cooling Capacity | 1.5 kW | |||
| Temperature Settings | 25℃(Laser Module),30℃(QBH) | |||
| Cooling Tubes Size(Extermal) | φ12 mm | |||
| Cooling Water Flux | >10L/min | |||
| QBH Cooling Water Flux | 1.5~2.0L/min | |||
| Others | ||||
| Weight | <35 kg | |||

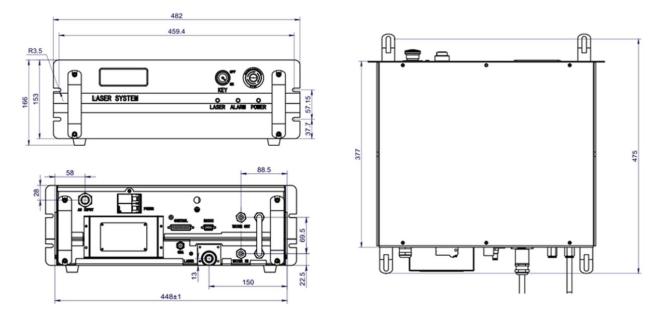

| Outline Feature |
153mm* 482mm*378mm |
|||
Structure Size (mm)
