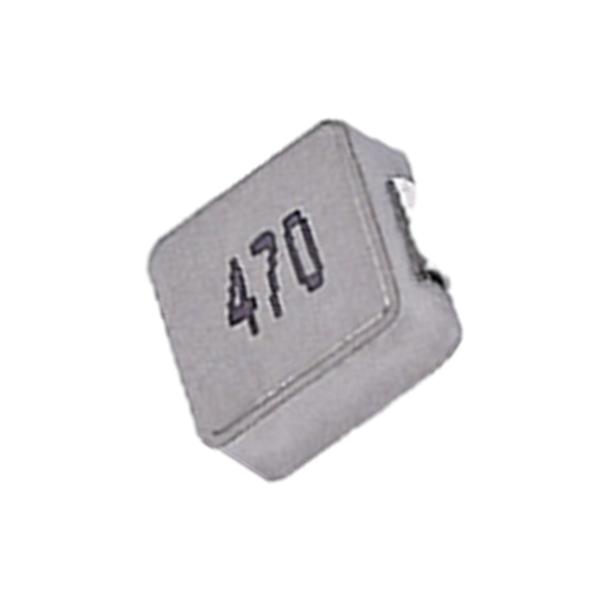

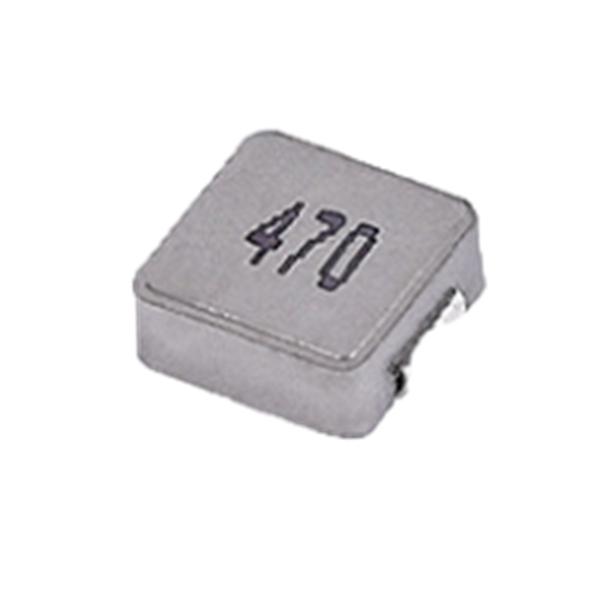

1040-47UH Integrated High Current Chip Inductor 10*10*4MM 4.7/6.8/15/22/33/47UH

SMD Power Inductor Original Smd Alloy Powder Molded Chip Integrated Circuit Ic 1.0uH~4.7uH

Features:

• Magnetically shielded construction, low DC resistance；
• Frequency Range: up to 29MHz；
• The use of magnetic iron powder ensure capability for large current；
• Low audible core noise
• Ideal for DC-DC converter applications in hand held
• RoHS compliant
• Reliable quality
•

Applications

• Automotive systems；
• Telecomm base stations.；
• Communications,Blue-ray disc recorders
• Consumer Products
• Personal navigation systems

Specification:

Dimensions

Specification

Packaging Information:

NOTES:

• DC current (Idc) that will cause an approximate △T of 40℃
• DC current (Isat) that will cause Lo to drop approximately 20%
• All test data is referenced to 25℃ ambient
• Operating Temperature Range -55℃ to +120℃
• The part temperature (ambient + temp rise) should not exceed 120℃ under the worst operating conditions.
• Circuit design, component placement, PWB trace size and thickness, airflow and other cooling provisions
• all affect the part temperature. Part temperature should be verified in the end application.

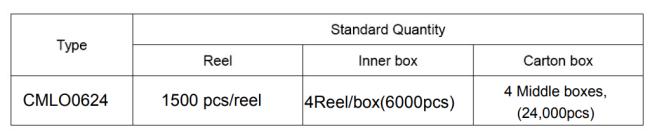

Packaging Quantity(pcs)
