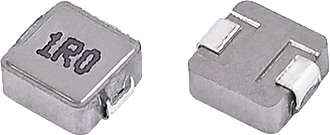

SMD Molding Power Inductor Copper Wire Toy Electronic Product

Features:

• Magnetically shielded construction, low DC resistance；
• The use of magnetic iron powder ensure capability for large current；
• Low audible core noise；
• Ideal for DC-DC converter applications in hand held personal computer and etc；
• Frequency Range: up to 30MHz；
• RoHS compliant

Applications:

• Smart phone,MID；
• Next-generation mobile devices with multifunction such as adding color TV and digital movie cameras；
• Flat-screen TVs, blue-ray disc recorders, set top box；
• Notebooks, desktop computers, servers, graphic cards；
• Portable gaming devices, personal navigation systems, personal multimedia devices；
• Automotive systems；
• Telecomm base stations.

Specification:

Electrical Characteristics :

• Operating and storage temperature range (individual chip without packing): cking): -25℃ ~ +125℃
• Storage temperature range (packaging conditions): -10℃~+40℃ and RH 70% (Max.)

Note:

• Maximum allowable DC current is that which causes a 10% inductance reduction from the initial

​ value, or coil temperature to rise by 40°C,whichever is smaller. (Reference ambient temperature 20°C).

• Operating temperature -55℃ ~ +125℃.
• All test data is referenced to 25℃ ambient
