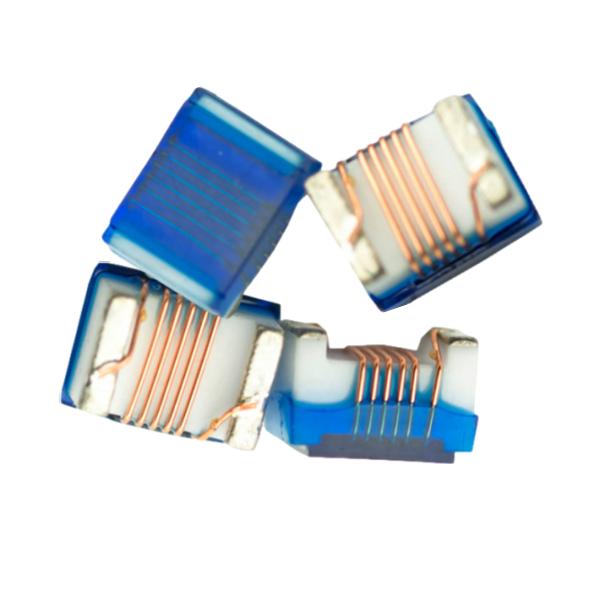

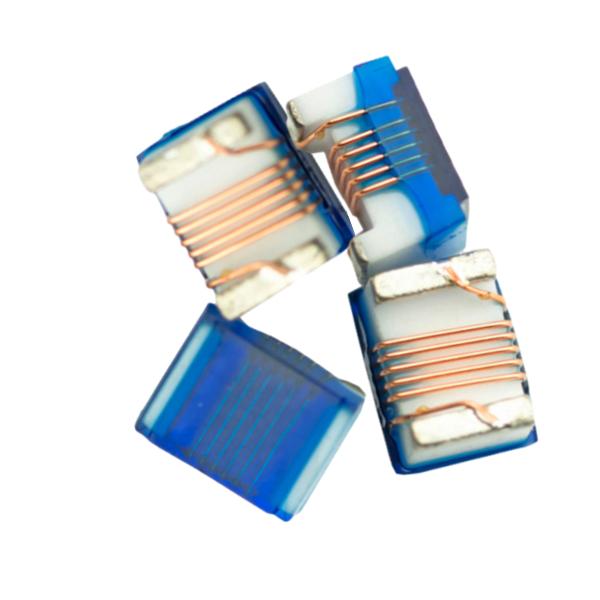

Ferrite Bead Inductor Wire Wound Chip Surface Mount Inductor For Multimedia Devices​

Features:

• Small chip suitable for surface mounting；
• The use of magnetic iron powder ensure capability for large current
• Ideal for DC-DC converter applications in hand held personal computer and etc
• Magnetically shielded construction, low DC resistance；
• Handles high transient current spikes without saturation

Application:

• Communications product
• Consumer Products
• Personal navigation systems
• Telecomm base stations.
• Portable gaming devices, personal navigation systems, personal multimedia devices
• Flat-screen TVs, blue-ray disc recorders, set top boxes.

Specification:

Shape and dimension(unit:mm)

Packaging Quantity:

Electrical Characteristics :

• Operating and storage temperature range (individual chip without packing): cking): -25℃ ~ +125℃
• Storage temperature range (packaging conditions): -10℃~+40℃ and RH 70% (Max.)

Note:

• Maximum allowable DC current is that which causes a 10% inductance reduction from the initial

​    value, or coil temperature to rise by 40°C,whichever is smaller. (Reference ambient temperature 20°C).

• Operating temperature -55℃ ~ +125℃.
• All test data is referenced to 25℃ ambient.

FAQ:

• HHow long will the delivery time take?

          Usually takes 14-21 days.

• How do you ship the goods and how long does it take?

          We usually ship by DHL, UPS, FEDEX, and TNT. Sample LT is 3-7 days, order LT is 20 days.

• How many production of inductance coil can you achieve?

          We can reach quantity about 5000000 a month.
