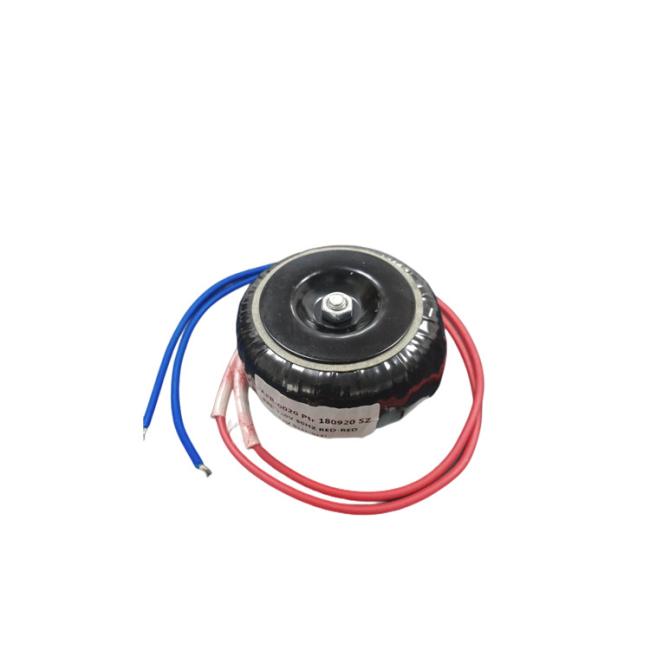

High Permeability Silicon Steel Toroidal Power Transformer For Power Supply

1.Product Descriptions:

1. Structural features

Core shape: The toroidal core is wound from silicon steel strip, and the closed loop design reduces the air gap in the magnetic circuit and improves the magnetic permeability.

Winding method: The windings are evenly distributed on the core, usually done by ring winding machine.

2. Advantages Of Toroidal Power Transformer

High efficiency: Closed magnetic circuit design reduces reluctance and iron loss, resulting in higher efficiency.

Low magnetic leakage: the magnetic field is concentrated in the iron core, less magnetic leakage, less electromagnetic interference.

Low noise: the iron core is compact, low vibration and noise.

Small size and light weight: compact structure, space saving, easy to install.

3. Application areas Of Toroidal Power Transformer

Audio equipment: Used in high quality audio amplifiers to provide pure power supply.

Medical equipment: used for precision instruments to ensure stable power supply.

Industrial control: used in automation equipment to provide reliable power supply.

Household appliances: such as high-end audio, TV, etc.

4. Manufacturing process

Iron core manufacturing: using high permeability silicon steel tape winding and annealing treatment.

Winding process: Use special winding machine to ensure even distribution.

Insulation treatment: The winding needs to be insulated to prevent short circuit.
