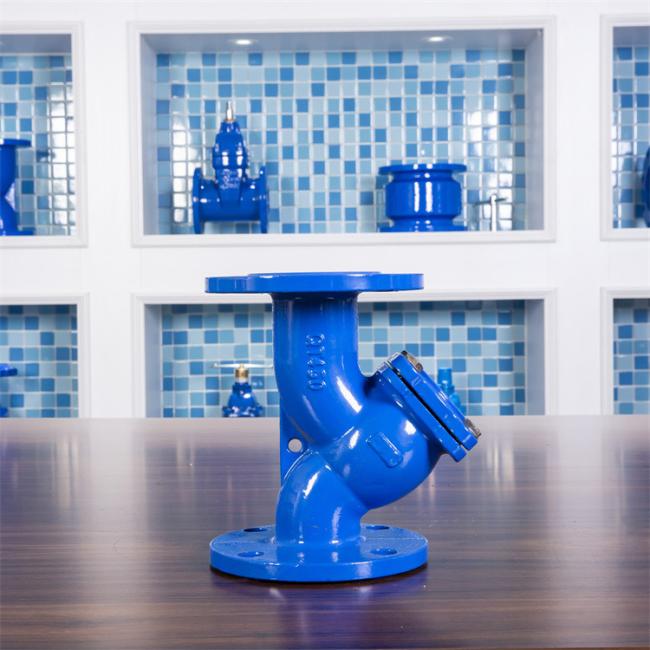

ductile iron Y-Strainers that are long-lasting, functional, cost-effective, and are well suited for commercial and industrial use. Elite Valve ductile iron Y-Strainers are suitable for a full range of steam, liquid, gas & oil, power, pulp & paper, process equipment, chemical, metal & mining and water & waste applications.

Y-type ductile iron filter body material ductile iron, filter stainless steel, stainless steel screws. Different sealing gaskets are used according to different media. Available in diameters ranging from DN40 to DN600. Three pressure levels: 1.0MPa, 1.6MPa, 2.5MPa. Standard flange connection, can be customized GB, German standard, American standard flange standard Y-type ductile iron filter. The appearance color is usually blue, and filters of other colors and materials can also be customized.

Main parameters of Y-type ductile iron filter
Nominal pressure: 1.0MPa-1.6MPa-2.5MPa.

Medium temperature: 0-150 degrees.

Applicable medium: water, oil, steam, seawater, sewage.

Specification diameter: 32 to 600mm.

Shell material: ductile iron.

Connection form: flange.

Flange standard: GB/T17241.6 GB/T9113; (casting flange)

Test standard: GB/T13927, Ap1598.

Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.

The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.

The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, in order to achieve the first- class quality, and favored by the majority of customers!
