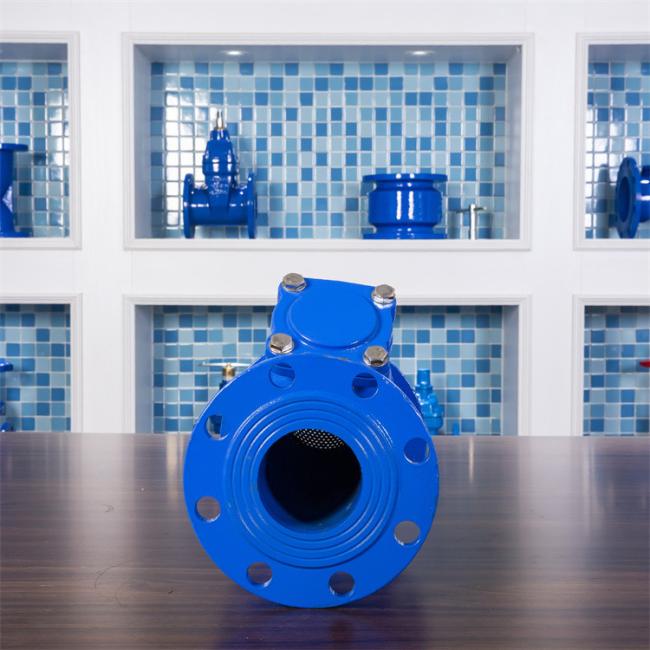

Cast Iron Screw Threaded Y Strainer DN50 GGG40 Water Pipe Line Strainer

Price Negotiable
Price: Negotiable
MOQ: 50 Pieces
Delivery Time: 7-25 work day
Brand: FB valve
Product Description

High Quality Cast Iron Screw Threaded Y Strainer DN50-DN400 For Industry



product description

Y-type ductile iron filter main body material ductile iron, filter stainless steel, stainless steel screws. Different sealing gaskets are used according to different media. Available in diameters ranging from DN40 to DN600. Three pressure levels: 1.0MPa, 1.6MPa, 2.5MPa. Standard flange connection, can be customized GB, German standard, American standard flange standard Y-type ductile iron filter. The exterior color is usually blue, and filters of other colors and materials can also be customized.

Ductile iron Y-strainers are an important part of piping systems to protect equipment from potential damage due to dirt as well as other particles that may be carried by the process fluid. During system startup and flushing, filters can be placed upstream of the water pump to protect them from construction debris that may have been left in the pipe. The text here below describes typical startup filters. Sex filters can be installed on control valves, steam traps, and protect them from corrosion products that may become dislodged and carried upstream throughout the piping system.





y-type filter(full bore) flange thickness flange outer circle structure lenght waterline height waterline diameter Height screen diameter filter lenght filter aperture center distance of filter
DN50 17 160 125 1.5 100 185 48 85 2 4
DN65 17 180 145 1.5 118 210 60 95 2 4
DN80 17 190 160 2 132 242 68 116 2 4
DN100 17 215 180 2 154 265 82 137 2 4
DN125   240 210 2 172
DN150   280 240 2 217   113 165 3 5
DN200 20 335 295 2 262
DN250 24     2.5 307







y-type filter(reduced diameter) flange thickness flange outer circle structure length waterline height waterline diameter Height screen diameter filter length filter aperture center distance of filter weight length
DN50 12.5 156 201 2 102 185 48 85 2 4 4.5 205
DN65 12 175 217 2 123 210 60 95 2 4 6.5 220
DN80 14 190 247 2 134 242 68 116 2 4 8 250
DN100 14.5 209 293.5 2 157 265 82 137 2 4 10.5 298
DN125 20 240                 14 315
DN150 24 280 335       113 165 2 5 19 350
DN200 24 335 405               34 410
DN250 24 405 460               58 525
DN300 24 460 520               80 605
DN350 25 520 580               98 627
DN400 27 580                 126 630





company  profile



Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!



































































































































































































































































































































Q: Are you a manufacturer or trading company?

A: We are a valve manufacturer and factory, and not a trading company.

Q: Do you have an agent or representative abroad?

A: We don't have an agent abroad,

please contact us to purchase valves from Fengbao Valve Co., Ltd directly.

Q: What's your product range?

A: We can produce a Gate valve, Check valve, Y strainer,

by ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.

Q: Is there any stock in your factory? and how about your lead time?

A: We stock valves with normal sizes.

The lead time depends on your quantity, generally 30-40 days.

 Q: Which countries do you export to?

A: We export directly to the vast majority of countries in the world.
