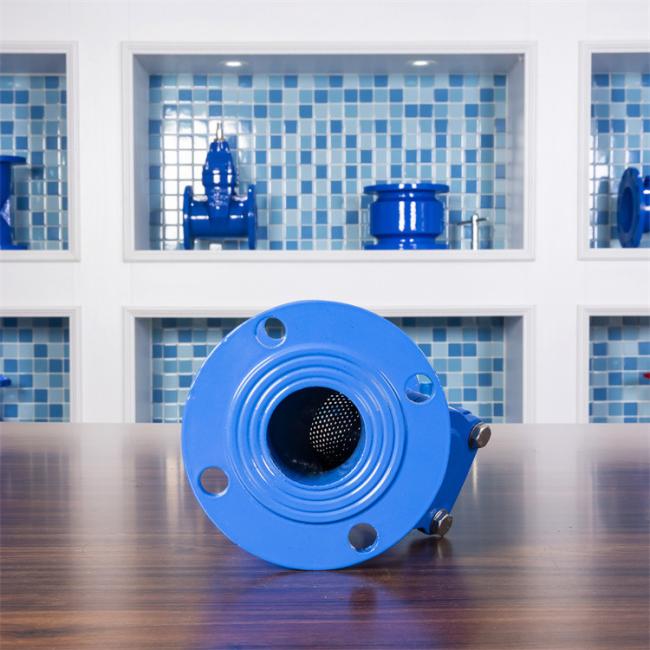

Ggg 50 Ductile Iron Blue Flanged Type DIN Standard Y-Strainer PN16

product description

Ductile iron Y-type filter function and application:
This product is designed to remove foreign matter from pipelines and provide protection for pumps, meters, valves and other similar mechanical equipment, it is called a strainer. "Y" filters are named after their shape and are often used for course filtering. But with a large filtering area, fine mesh can be used also. This filter improves clearance in the medium term and prolongs valve life, protecting expensive pumps, meters and other equipment. It is suitable for water, air, gas, oil, steam and other fluids.
What is the difference between a ductile iron Y-strainer and a strainer? It includes a single-use media for removing particles of specified micron size.
Simply put, a screen is also a filter, but it uses a perforated plate or screen to remove larger particles from the process stream. The main advantage of a filter is that it is reusable.
This product is mainly set on various water supply and drainage or steam and gas pipelines and used to protect other piping or valve from getting damaged by the fragments and impurities in the system.
Features

1. Nice modeling,a pressure testing hole is preset on the body.
2. Convenient and quick use.It is possible,according to the user's requirement,to change the screwed plug on the body into a ball valve and let its outlet connected to sewage pipe,this can make it done to dredge sewage with pressure while not to remove the bonnet.
3. Filtering screens of different filtering accuracies can be provided according to the user's requirement,making the filtering screen cleaned more conveniently.
4. The fluid channel is designed scientifically and reasonably,smaller flowing resistance and greater flow.The total area of the mesh comes as 3-4times that of DN.
5. The telescopic type makes installation and removal more convenient.





y-type filter(reduced diameter)	flange thickness	flange outer circle	structure length	waterline height	waterline diameter	Height	screen diameter	filter length	filter aperture	center distance of filter	weight	length
DN50	12.5	156	201	2	102	185	48	85	2	4	4.5	205
DN65	12	175	217	2	123	210	60	95	2	4	6.5	220
DN80	14	190	247	2	134	242	68	116	2	4	8	250
DN100	14.5	209	293.5	2	157	265	82	137	2	4	10.5	298
DN125	20	240									14	315
DN150	24	280	335				113	165	2	5	19	350
DN200	24	335	405								34	410
DN250	24	405	460								58	525
DN300	24	460	520								80	605
DN350	25	520	580								98	627
DN400	27	580									126	630
