Nodular Float Ball Check Valve Cast Iron Ductile Non Return Check Valve

Price Negotiable
Price: Negotiable
MOQ: 50 Pieces
Delivery Time: 7-25 work day
Brand: FB valve
Product Description

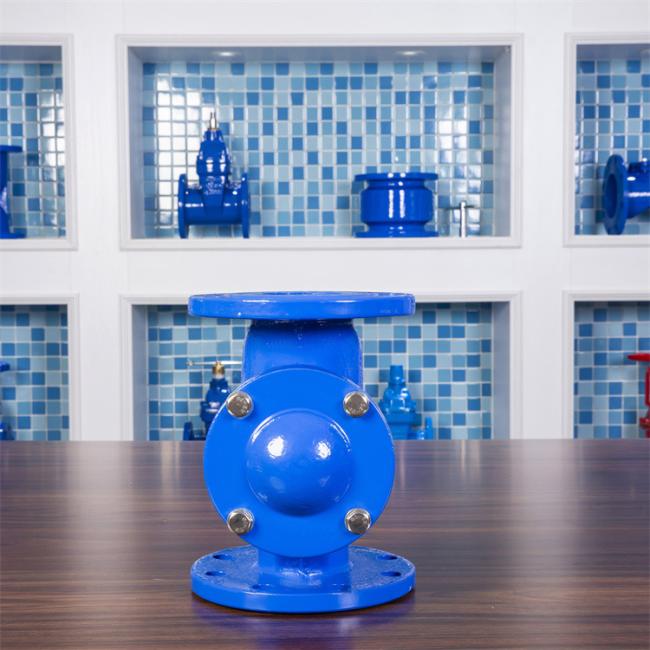

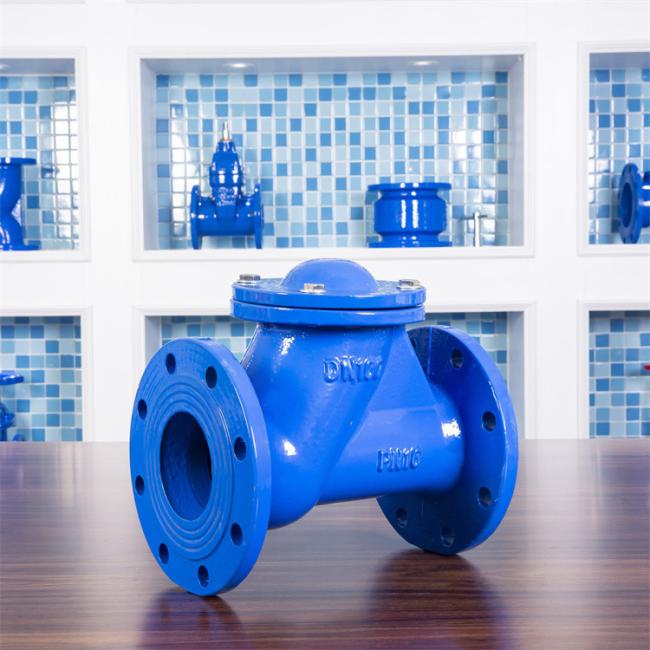

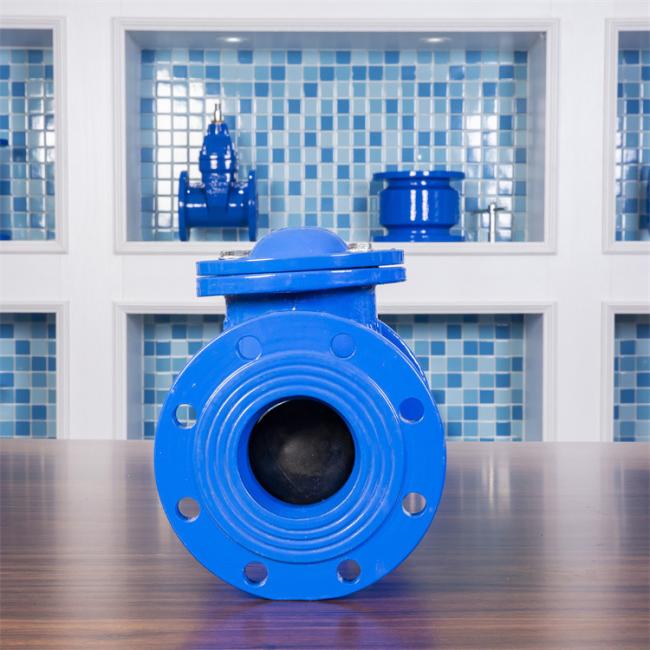

Ductile Nodular Cast Iron Float Ball Type Non Return Check Valve

1. Working pressure: 1.0/1.6Mpa

2. Working temperature:

NBR: 0℃~+80℃

EPDM: -10℃~+120℃

3. Face to face according to DIN3202 F6, ANSI 125/150

4. Flange according to EN1092-2, PN16/25. ANSI 125/150 etc.

5. Testing: DIN3230, API598 6. Medium: Fresh Water, Sea water, food stuff, all kinds of oil, acid, alkaline liquid etc.


technical parameter



NO.
PART
MATERIAL
1

Body
GG25/GGG40
2

Ball
Metal+ NBR/EPDM
3

Cap
GG25/GGG40
4

Bolt
Stainless Steel
5

Gasket
NBR/EPDM



DN(mm)
40
50
65
80
100
125
L(mm)
180
200
240
260
300
350
H(mm)
98
106
129
146
194
207
ΦD(mm)
PN10
Φ110
Φ125
Φ145
Φ160



Φ180
Φ210
PN16
Φ110
Φ125
Φ145
Φ160
Φ180
Φ210
DN(mm)
150
200
250
300
350
400
L(mm)
400
500
600
700
800
900
H(mm)
240
322
388
458
610
705
ΦD(mm)
PN10
Φ240
Φ295
Φ350
Φ400
Φ460
Φ515
PN16
Φ240
Φ295
Φ355
Φ410
Φ470
Φ525










company  profile



Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.

The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.

The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!







Q1. Can I have a sample order for valve? A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q2. Do you have any MOQ limit for valve order? A: Low MOQ, 1pc for sample checking is available
Q3. How do you ship the goods and how long does it take to arrive? A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional.
Q4. How to proceed an order for valve? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q5: Are you products standard? A: Our model is standard, if you have specific demand, pls tell us.
Q6: Do you have interest to do our own design items? A: Absolutely! We have big interest.
