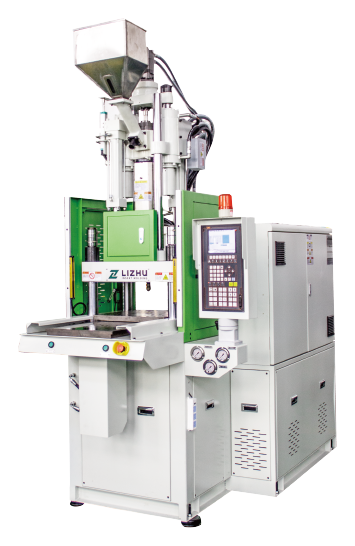

Automatic Vertical Injection Molding Machine With Rotary Table Molding Equipment
Single Slide Vertical Injection Molding Machine Series For Plastic Components
1. Description:
1) Vertical clamping makes it easy to insert and remove items.
2) Its robust mechanical structure, high pressure, and high speed make it suitable for molding large inserts into plastic products.
3) An optional rotary table series injection machine improves operator safety and production efficiency.
4) A dual injection cylinder system makes it possible to inject at high speeds and pressures.
5) Changing the material tube is made easier by the unique design of the injection unit, which allows the hydraulic charging motor to rotate 180 degrees from its initial position.
6) The powerful injection structure keeps the stable injection unit when the hydraulic motor is charging.
7) An energy-efficient servo system, an electric injection unit, and a high-speed injection unit are options. A slide table or rotating table can be added as an option for increased productivity and safety.
2. Sepcifications:
| Type | Unit | LZ-1600/LZ-1600D/LZ-1600-2R | |||||
| Injection unit | Screw dia. | mm | 50 | 55 | 60 | ||
| Injection pressure | kg/cm2 | 2150 | 1777 | 1493 | |||
| Theoretical shot volume | cm3 | 392 | 475 | 565 | |||
| Shot weight | g | 350 | 420 | 500 | |||
| oz | 12.2 | 14.8 | 17.6 | ||||
| Injection rate | cm3/sec | 235 | 284 | 339 | |||
| Screw stroke | mm | 200 | |||||
| Screw rate | rpm | 0-350 | |||||
| Injection speed | mm/s | 120 | |||||
| Temperature section(zone) | - | 5 | |||||
| Clamping unit | Clamping force | tons | 160 | ||||
| Opening force | tons | 20 | |||||
| Fixed table | Table size | mm | 1060*800 | ||||
| Tie bar | mm | 760*500 | |||||
| Single sliding table size | mm | 750*750 | |||||
| Rotary table | Table size | mm | 1600 | ||||
| Max mold size | mm | 750*600 | |||||
| Min. mold thickness | mm | 350 | |||||
| Opening stroke | mm | 350 | |||||
| Opening daylight | mm | 700 | |||||
| Max. mold weight | kg | 1500 | |||||
| Electric unit | Ejector force | tons | 6 | ||||
| Ejector stroke | mm | 50 | 100 | ||||
| Max. pressure | kg/cm2 | 140 | |||||
| Pump output volume | liters/min | 180 | |||||
| Oil tank volume | liters | 480(Fixed table)/560(sliding.rotary) | |||||
| Cooling water volume | liters/hr | 80 | |||||
| Servo Motor | kw | 37 | 48 | ||||
| Heater | kw | 16 | |||||
| Total wattage | kw | 53 | 53 | 64 | |||
| Others | Machine weight | tons | 7.9 | 8.5 | 11 | ||
| Machine size | m | L2.9*W1.8*H4.8 | L3.3*W1.8*H4.9 | L3.4*W2.4*H4.9 | |||
3. Machine Features:
* Vertical clamping makes it easy to insert and remove items.

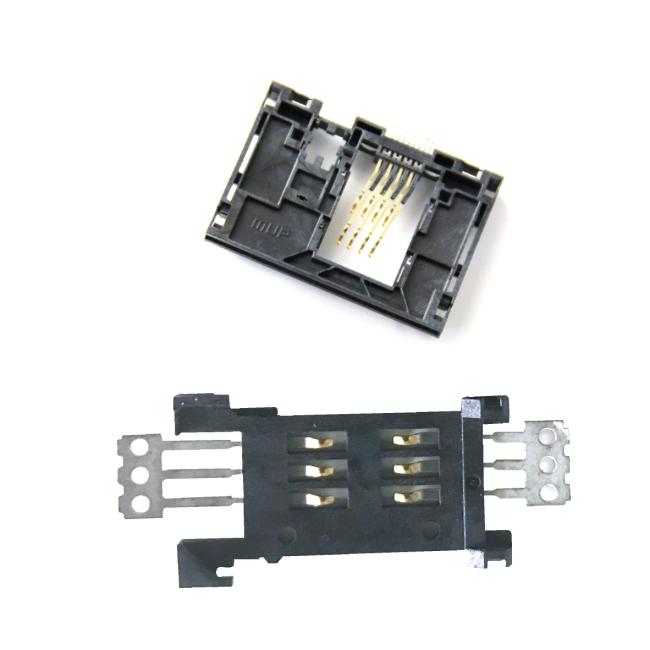

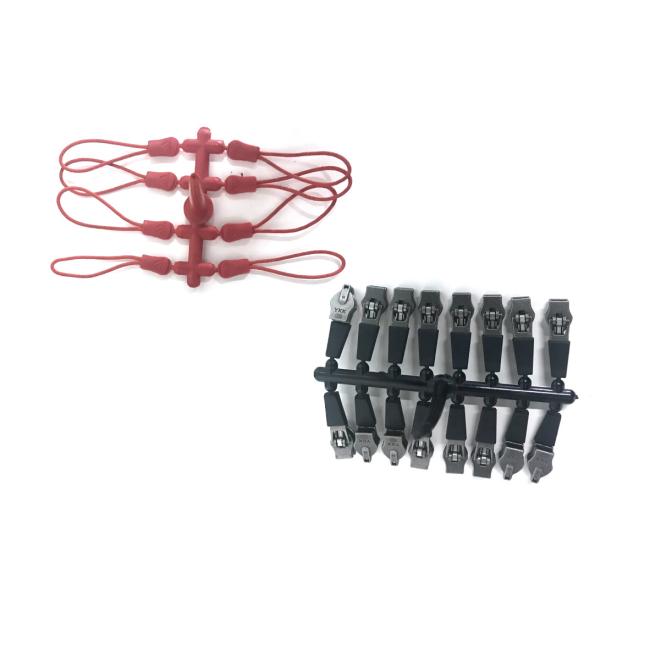

* Its robust mechanical structure, high pressure, and high speed make it suitable for molding large inserts into plastic products.
* An optional rotary table series injection machine improves operator safety and production efficiency.

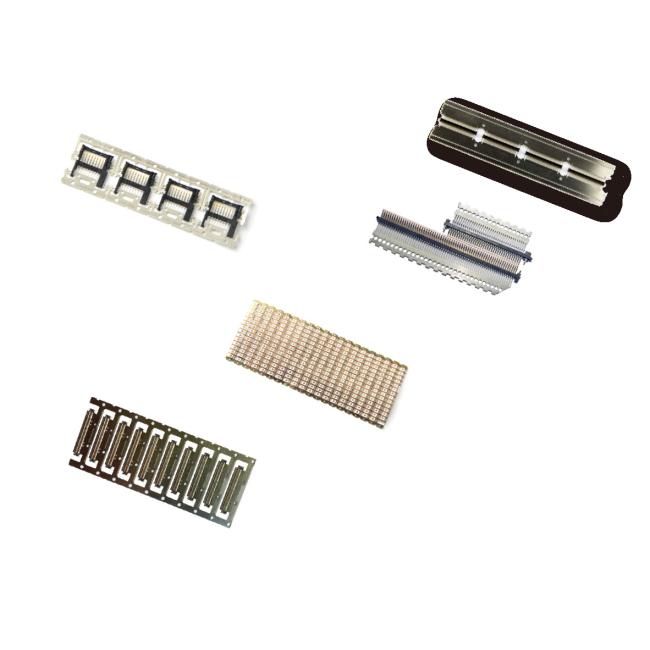

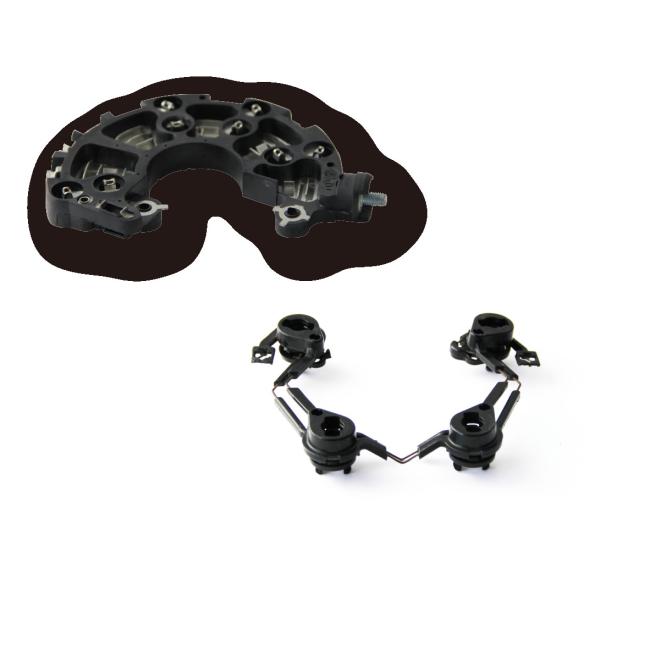

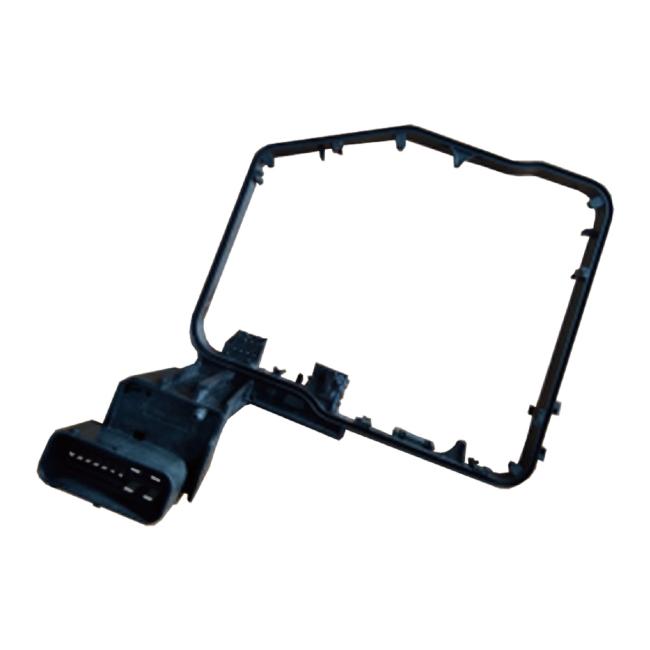

4. Pictures:
