Plastic Vertical Injection Molding Machine 6000 Grams Injection Volume
Compact Vertical Plastic Injection Molding Machine With Rotary Stations
1. Description:
- Clamping time is decreased by the innovative Platen Lift System design.
- By lessening the load on the toggle, it increases toggle lifetime.
- Unlike hydraulic clamping, which requires high clamping pressure, our toggle clamping method only needs minimal clamping pressure.
- Dual injection cylinder systems allow for high-pressure and high-speed injection.
- Because of the injection unite's distinctive design, the hydraulic charging motor may rotate 180 degrees from its starting position, making it simpler to replace the material tube.
- The robust injection structure stabilizes the injection union as the hydraulic motor is charged.
- To boost safety, consider using a rotating or sliding table.
2. Sepcifications:
| Item | Unit | LZ-2R | |||
| Injection Unit | Screw Diameter | mm | Ø40 | Ø45 | Ø50 |
| Injection Pressure | Kg/cm2 | 2216 | 1948 | 1237 | |
| Theoretical Shot Volume | cm3 | 215 | 262 | 318 | |
| Shot Weight(PS) | g | 48 | 58 | 67 | |
| oz | 1.6 | 1.4 | 2.2 | ||
| Injection Rate | cm3/sec | 162 | 216 | 247 | |
| Screw Stroke | mm | 145 | |||
| Screw Rate | rpm | 0-250 | |||
| Injection speed | mm/s | 121 | |||
| Nozzle Stroke | mm | 382 | |||
| Clamping Force | Clamping Force | tons | 45 | ||
| Opening Force | tons | 13 | |||
| Sliding Plate Size | mm | 540*526 | |||
| Plate Size | mm | 585*1170 | |||
| Rotary Table Diameter | mm | - | |||
| Sliding Table Stroke | mm | - | |||
| Max Mold Size | mm | 580*360 | |||
| Min Mold Thickness | mm | 300(50+50) | |||
| Opening Stroke | mm | 220 | |||
| Max Opening Stroke | mm | 550(50+50) | |||
| Position tolerance | mm | ±0.02 | |||
| Ejector Unit | Ejector Stroke | mm | 50/110 | ||
| Ejector Force | Tons | 7 | |||
| Ejector Diameter | mm | 25 | |||
| Ejector PCS. | pcs | 1 | |||
| Hybrid Unit | Oil Tank Volume | liters | 155 | ||
| Cold Water Volume | Liters/min | 165 | |||
| Servo Motor | kw | 22 | |||
| Heating Volume | kw | 14 | |||
| Total Wattage | kw | 35 | |||
| Others | Machine Weight | tons | 6.8 | ||
| Machine Size | m | - | |||
3. Machine Features:
- Vertical injection has a vertical mold aperture that is appropriate for insert molding
- Nitrided steel screw, material tube, hydraulic motor drive with high torque, multi-stage injection pressure, and effective plasticizing.
- Direct pressure mother-mold lock cylinder design, quick clamping, low-pressure safety clamping, auto-closing molds, numerous pressure controls, excellent safety, and extended mold life.

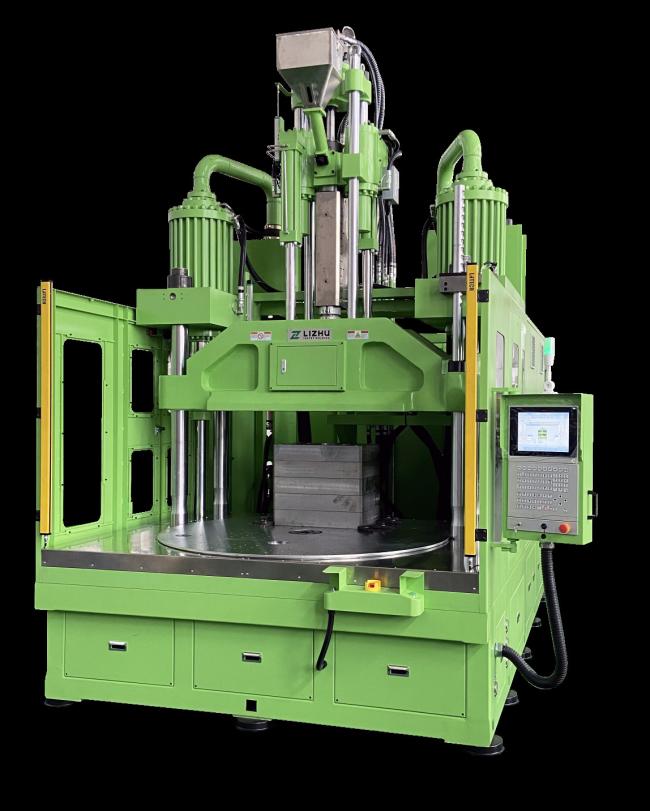

4. Pictures:
