Precision PVC Vertical Injection Moulding Machine 550 Tons 6000 Grams Horizontal Molding
Small Presicion Plastic Vertical Injection Moulding Machine
1. Description:
- High-precision, power-saving, and energy-efficient proportional pressure and flow variable displacement pump systems tailor the hydraulic system's output to the required power for the machine's full operation without sacrificing high pressure throttle or overflow energy.
- A twin injection cylinder system enables both high-pressure and high-speed injection.
- The injection unit's unusual design allows the hydraulic charging motor to spin 180 degrees from its initial position, which makes replacing the material tube simpler.
- The sturdy injection structure keeps the injection unit stable while the hydraulic motor is charging
- For more efficiency and security, slide or rotating tables are provided.
2. Sepcifications:
| Item | Unit | LZ-Standard | |||
| Injection Unit | Screw Diameter | mm | Ø25 | Ø28 | Ø30 |
| Injection Pressure | Kg/cm2 | 2146 | 1713 | 1498 | |
| Theoretical Shot Volume | cm3 | 42 | 61 | 74 | |
| Shot Weight(PS) | g | 43 | 54 | 61 | |
| oz | 1.2 | 1.5 | 2.0 | ||
| Injection Rate | cm3/sec | 109 | 172 | 143 | |
| Screw Stroke | mm | 140 | |||
| Screw Rate | rpm | 0-250 | |||
| Injection speed | mm/s | 138 | |||
| Nozzle Stroke | mm | 315 | |||
| Clamping Force | Clamping Force | tons | 45 | ||
| Opening Force | tons | 20 | |||
| Sliding Plate Size | mm | 590*540 | |||
| Plate Size | mm | 585*1170 | |||
| Rotary Table Diameter | mm | - | |||
| Sliding Table Stroke | mm | - | |||
| Max Mold Size | mm | 570*360 | |||
| Min Mold Thickness | mm | 300(50+50) | |||
| Opening Stroke | mm | 250 | |||
| Max Opening Stroke | mm | 550(50+50) | |||
| Position tolerance | mm | ±0.02 | |||
| Ejector Unit | Ejector Stroke | mm | 50/110 | ||
| Ejector Force | Tons | 7 | |||
| Ejector Diameter | mm | 25 | |||
| Ejector PCS. | pcs | 1 | |||
| Hybrid Unit | Oil Tank Volume | liters | 152 | ||
| Cold Water Volume | Liters/min | 145 | |||
| Servo Motor | kw | 20 | |||
| Heating Volume | kw | 15 | |||
| Total Wattage | kw | 25 | |||
| Others | Machine Weight | tons | 1.8 | ||
| Machine Size | m | ** | |||
3. Machine Features:
- With vertical clamping and injection, any type of insert item can be employed.
- Vertical clamping facilitates the insertion and removal of things.
- Because of its strong mechanical design, high pressure, and quick processing rate, this equipment can shape considerable inserts into plastic products.

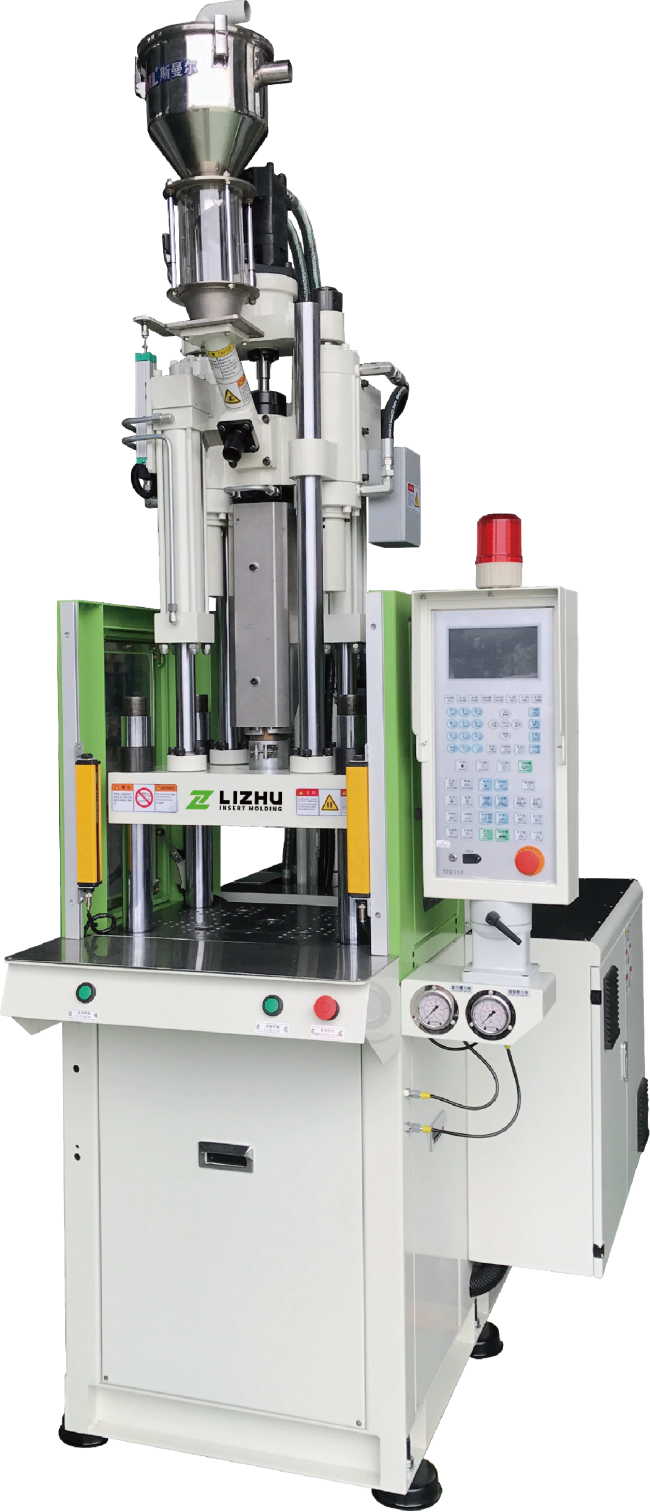

4. Pictures:
5. FAQ:
1) Are you a manufacturer or a trading company?
We are professional vertical injection molding machine manufacturer in China.
2) Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3) How can you guarantee quality?
Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.
4) Do you accept my own design?
We can provide OEM/ODM service.
5) When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
