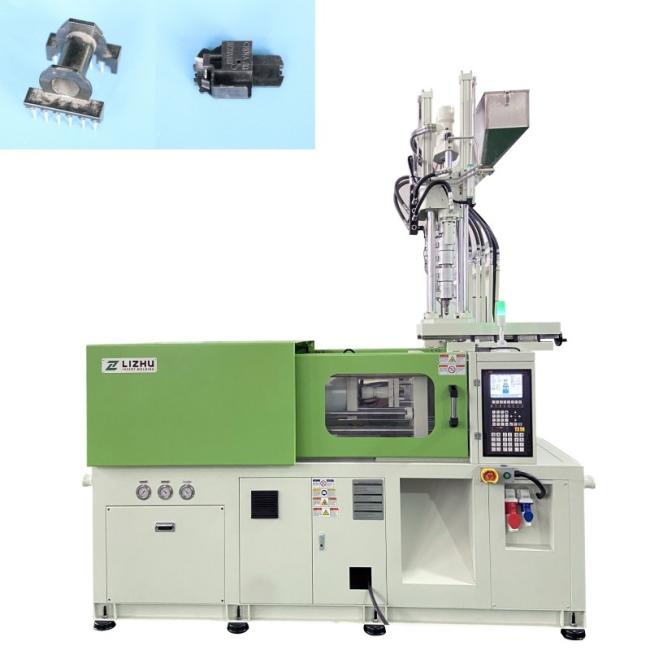

Vertical Injection Molding Machine High Accuracy Horizontal Injection Vertical Clamping Machine
High Accuracy New Technology Plastic Vertical Injection Molding Machine
1. Description:
- Vertical injection molding machines and horizontal injection molding machines accomplish the same operations despite being configured to work on the vertical axis.
- A range of customer needs can be met by this equipment, which comes in hydraulic, electric, and hybrid variants. Vertical injection molding machines need a very little amount of floor space because of where they are located.
- For insert molding applications, vertical injection molding machines are perfect.
- Components don't need to be overmolded; they can simply be put in the mold and held there by gravity.
- A shuttle or rotary table is typically used in vertical injection molding machines to enable loading and demolding to take place throughout the machine's cycle time.
2. Sepcifications:
| Type | Unit | LZ-1600/LZ-1600D/LZ-1600-2R | |||||
| Injection unit | Screw dia. | mm | 50 | 55 | 60 | ||
| Injection pressure | kg/cm2 | 2150 | 1777 | 1493 | |||
| Theoretical shot volume | cm3 | 392 | 475 | 565 | |||
| Shot weight | g | 350 | 420 | 500 | |||
| oz | 12.2 | 14.8 | 17.6 | ||||
| Injection rate | cm3/sec | 235 | 284 | 339 | |||
| Screw stroke | mm | 200 | |||||
| Screw rate | rpm | 0-350 | |||||
| Injection speed | mm/s | 120 | |||||
| Temperature section(zone) | - | 5 | |||||
| Clamping unit | Clamping force | tons | 160 | ||||
| Opening force | tons | 20 | |||||
| Fixed table | Table size | mm | 1060*800 | ||||
| Tie bar | mm | 760*500 | |||||
| Single sliding table size | mm | 750*750 | |||||
| Rotary table | Table size | mm | 1600 | ||||
| Max mold size | mm | 750*600 | |||||
| Min. mold thickness | mm | 350 | |||||
| Opening stroke | mm | 350 | |||||
| Opening daylight | mm | 700 | |||||
| Max. mold weight | kg | 1500 | |||||
| Electric unit | Ejector force | tons | 6 | ||||
| Ejector stroke | mm | 50 | 100 | ||||
| Max. pressure | kg/cm2 | 140 | |||||
| Pump output volume | liters/min | 180 | |||||
| Oil tank volume | liters | 480(Fixed table)/560(sliding.rotary) | |||||
| Cooling water volume | liters/hr | 80 | |||||
| Servo Motor | kw | 37 | 48 | ||||
| Heater | kw | 16 | |||||
| Total wattage | kw | 53 | 53 | 64 | |||
| Others | Machine weight | tons | 7.9 | 8.5 | 11 | ||
| Machine size | m | L2.9*W1.8*H4.8 | L3.3*W1.8*H4.9 | L3.4*W2.4*H4.9 | |||
3. Machine Features:
1) The screw rod and nuts used in the clamping unit's design, which reduces the clamping cylinder stroke, improves performance.
2) Lower working height than in conventional designs.
3) Applicable to all insert component types.
4. Pictures:
5. FAQ:
1) Are you a manufacturer or a trading company?
We are professional vertical injection molding machine manufacturer in China.
2) Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3) How can you guarantee quality?
Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.
4) Do you accept my own design?
We can provide OEM/ODM service.
5) When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
