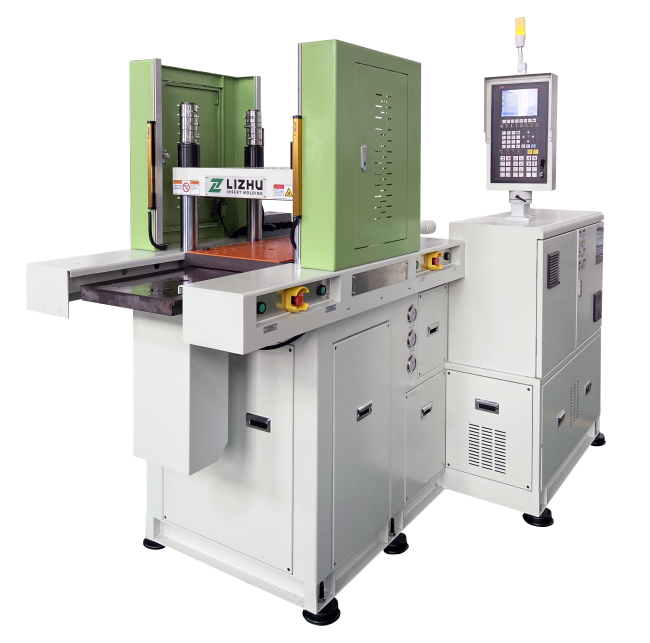

200 Ton Precision Injection Molding Machine 6000 Grams Plastic Vertical Injection Making Machine

Price Negotiable
Price: Negotiation
MOQ: Negotiation
Delivery Time: 7-10days
Brand: LIZHU
Product Description



Factory Direct Injection Molding Machine Supplier From China



1. Description:



We are able to provide horizontal clamping and vertical Injection Moulding Machine thanks to our current technical proficiency and broad industrial experience.
The offered molding machine is built utilizing state-of-the-art methods and premium components under the direct supervision of our knowledgeable experts.
To create molds, many different industries use this machine.
We offer our customers a wide range of configurations and unbeatable prices for this molding machine.



2. Sepcifications:



Specification
Model
Unit
LZ-JS
Injection Unit
Screw diameter
mm
Ф36
Ф42
Maximum injection pressure
Kg/cm2
2074
1523
Theoretical shot volume
cm3
162
221
Maximum shot weight(PS)
g/Oz
150 / 5.3
203 / 7.1
Injection rate
cm3/sec
88
120
Clamping Unit
Clamping Force
ton
120
Rotary Table Diameter
mm
1380
Tie bar distance
mm
-
Minimum mold thickness
mm
200/300 (customization)
Opening stroke
mm
300
Open daylight
mm
500/600 (customization)
Ejector force
T
4.0
Ejector stroke
mm
75
Others
Pump motor power
Kw
15
Hydraulic system pressure
Kg/cm2
140
Barrel heating power
Kw
7
Total Wattage
Kw
22
Oil Tank Capacity
L
650
Machine Weight (approx.)
T
6.9
Machine dimensions(approx.)
m
2.6×1.8× 3.9



3. Machine Features:



1) Horizontal injection and vertical clamping.



2) Have a big injection weight and longer opening stroke for large-scale molds that can be contained.



3) Use the insert molding process on large-scale items.



4. Pictures:



5. FAQ:



1) Are you a manufacturer or a trading company?

We are professional vertical injection molding machine manufacturer in China.



2) Why Choose you?

We have high quality, professional team, good service, and competitive prices.



3) How can you guarantee quality?

Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.



4) Do you accept my own design?

We can provide OEM/ODM service.



5) When can I get my machine after I paid?

We will deliver the machines on time as the date we agreed.
