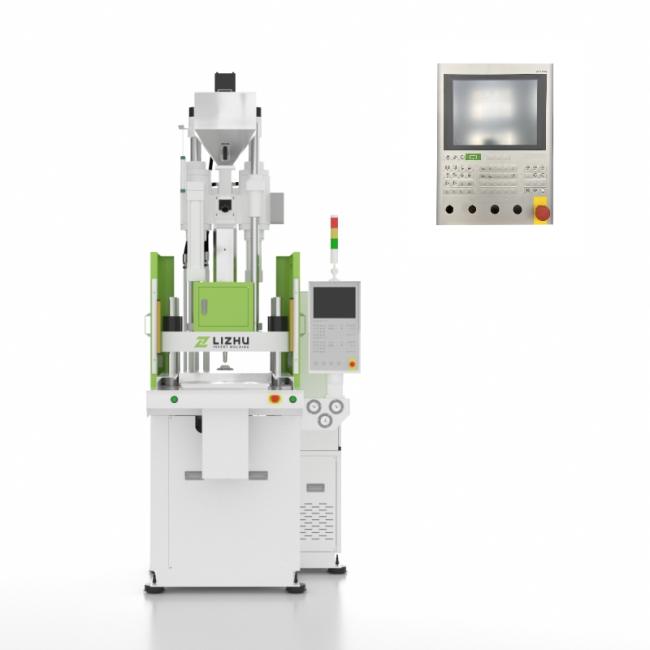

150 Grams Electric Plastic Vertical Injection Molding Machine Mini Moulding machine
Plastic Injection Mould Machine With CE Certificate In China
1. Description:
- Vertical injection molding machines operate in the same way as horizontal machines, but on a vertical axis. This equipment is also available in hybrid, electric, and hydraulic models to meet a variety of customer requirements.
- The system of dual injection cylinders allows for high-pressure and high-speed injection.
- Because of the injection unite's unusual design, the hydraulic charging motor can turn 180 degrees from its original position, making it easy to change the material tube.
- When the hydraulic motor is charging, the injection union is stabilized due to the powerful injection structure.
- A slide table or rotating table is available as an option for increased safety and productivity.
- Clamping force of the Toggle Clamping System ranges from 40 to 1000 tons.
2. Sepcifications:
| Item | Unit | LZ-DP | |||
| Injection Unit | Screw Diameter | mm | Ø40 | Ø45 | Ø50 |
| Injection Pressure | Kg/cm2 | 2134 | 1256 | 1205 | |
| Theoretical Shot Volume | cm3 | 215 | 262 | 318 | |
| Shot Weight(PS) | g | 172 | 202 | 232 | |
| oz | 6.3 | 7.1 | 9.5 | ||
| Injection Rate | cm3/sec | 164 | 216 | 247 | |
| Screw Stroke | mm | 145 | |||
| Screw Rate | rpm | 0-250 | |||
| Injection speed | mm/s | 122 | |||
| Nozzle Stroke | mm | 380 | |||
| Clamping Force | Clamping Force | tons | 30 | ||
| Opening Force | tons | 15 | |||
| Sliding Plate Size | mm | 550*533 | |||
| Plate Size | mm | 585*1280 | |||
| Rotary Table Diameter | mm | - | |||
| Sliding Table Stroke | mm | - | |||
| Max Mold Size | mm | 595*350 | |||
| Min Mold Thickness | mm | 300(50+50) | |||
| Opening Stroke | mm | 230 | |||
| Max Opening Stroke | mm | 550(50+50) | |||
| Position tolerance | mm | ±0.03 | |||
| Ejector Unit | Ejector Stroke | mm | 50/113 | ||
| Ejector Force | Tons | 7 | |||
| Ejector Diameter | mm | 25 | |||
| Ejector PCS. | pcs | 1 | |||
| Hybrid Unit | Oil Tank Volume | liters | 152 | ||
| Cold Water Volume | Liters/min | 163 | |||
| Servo Motor | kw | 20 | |||
| Heating Volume | kw | 15 | |||
| Total Wattage | kw | 30 | |||
| Others | Machine Weight | tons | 2.5 | ||
| Machine Size | m | - | |||
3. Machine Features:
- The vertical direct hydraulic clamping system's precision and security make it ideal for insert molding.
- The machine has many impressive features, including a breakthrough in the seamless coupling of the electrical servo and hydraulic drive system, high response, energy savings, low noise, high control precision, and more.
- It uses a powerful servo dynamic control system and an oil pump as its power source.
4. Pictures:
5. FAQ:
1) Are you a manufacturer or a trading company?
We are professional vertical injection molding machine manufacturer in China.
2) Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3) How can you guarantee quality?
Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.
4) Do you accept my own design?
We can provide OEM/ODM service.
5) When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
